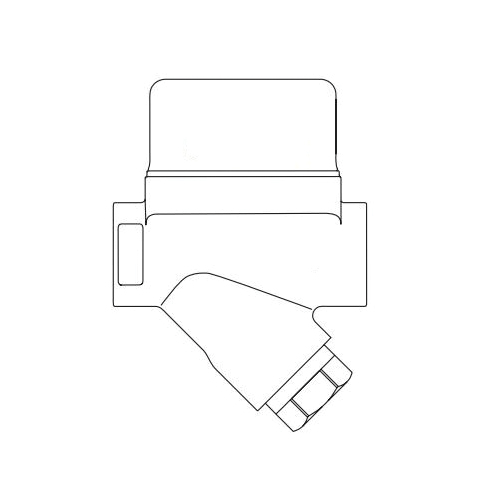

Spirax Sarco 1870252 TDC46M Horizontal Thermodynamic Steam Trap, 3/4 in Nominal, Socket Weld End Style, Carbon Steel
CBPN: 253795
MPN:1870252
Price:
$1031.94 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, Horizontal, Series: TDC46M, 3/4 in Nominal, Socket Weld End Style, 92 mm Length, 1.5 to 46 bar g Pressure, Carbon Steel, 0 to 425 deg C
The TDC46M is a carbon steel, Thermodynamic Steam Trap that has been specifically designed for low capacity applications up to 46 bar g (where pipe connections permit). As standard the unit is available with either screwed, socket weld or flanged connections.
Spirax Sarco 1870252 TDC46M Horizontal Thermodynamic Steam Trap, 3/4 in Nominal, Socket Weld End Style, Carbon Steel
CBPN: 253795
MPN:1870252
Price:
$1031.94 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, Horizontal, Series: TDC46M, 3/4 in Nominal, Socket Weld End Style, 92 mm Length, 1.5 to 46 bar g Pressure, Carbon Steel, 0 to 425 deg C
The TDC46M is a carbon steel, Thermodynamic Steam Trap that has been specifically designed for low capacity applications up to 46 bar g (where pipe connections permit). As standard the unit is available with either screwed, socket weld or flanged connections.
Specifications
Brand: Spirax Sarco
Weight: 3.6 lbs
Nominal Size: 3/4 in
End Style: Socket Weld
Material: Carbon Steel
Max Operating Pressure: 667 psig
Max Allowable Pressure: 1450 psig/up to 122 deg F
Max Allowable Temperature: 797 deg F/up to 833 psig
Length: 92 mm
Manufacturer Name: Spirax-Sarco Inc
Series: TDC46M
Type: Horizontal
Standards and Approvals: ANSI Class 3000 | ASTM A216 Grade WCB | ASTM BS 3799 | EN 10204 3.1 | European Pressure Equipment Directive 97/23/EC
