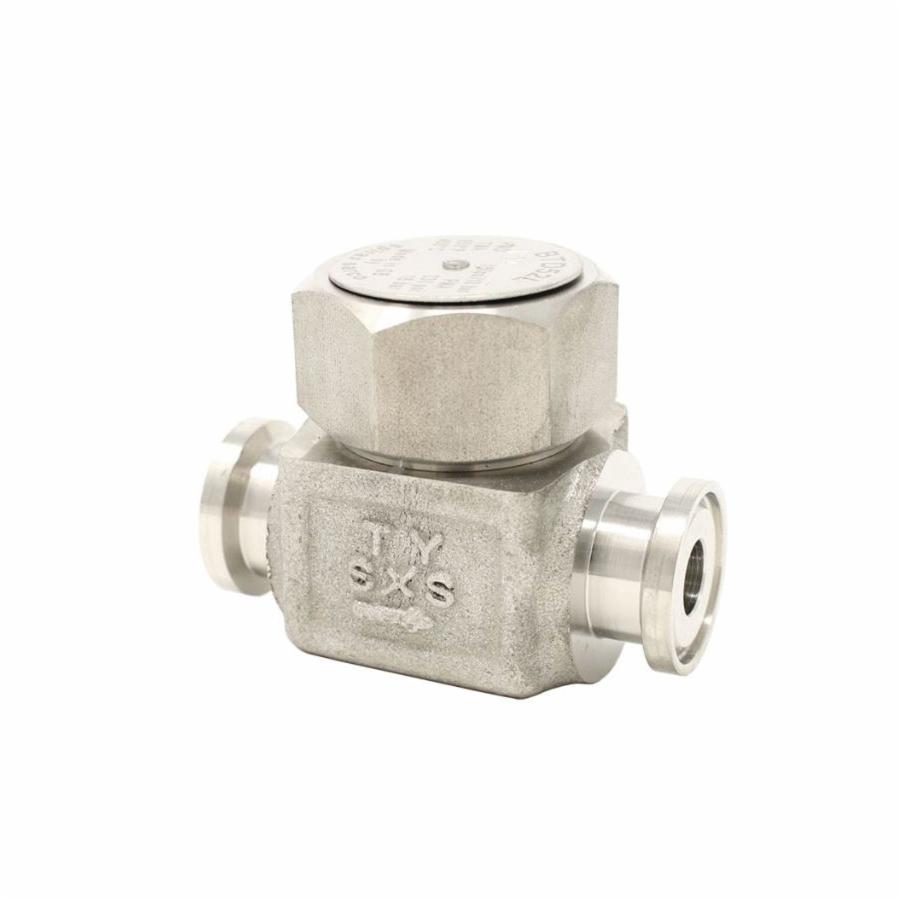

Spirax Sarco 1810298, BTD52L Thermodynamic Steam Trap, 1/2 in, Sanitary Clamp, 750 deg F, 10 bar, 316L Stainless Steel
CBPN: 30084
MPN:1810298
Price:
$1062.88 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, 1/2 in Nominal, Sanitary Clamp, 2-1/2 in Length, 10 bar, 316L Stainless Steel, 750 deg F, 1.9 in H x 1.4 in W
The BTD52L is manufactured from 316L stainless steel specifically for mains drainage applications in clean steam systems.
Spirax Sarco 1810298, BTD52L Thermodynamic Steam Trap, 1/2 in, Sanitary Clamp, 750 deg F, 10 bar, 316L Stainless Steel
CBPN: 30084
MPN:1810298
Price:
$1062.88 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, 1/2 in Nominal, Sanitary Clamp, 2-1/2 in Length, 10 bar, 316L Stainless Steel, 750 deg F, 1.9 in H x 1.4 in W
The BTD52L is manufactured from 316L stainless steel specifically for mains drainage applications in clean steam systems.
Specifications
Brand: Spirax Sarco
Weight: 1.2 lbs
Nominal Size: 1/2 in
End Style: Sanitary Clamp
Material: Stainless Steel
Max Operating Pressure: 145 psig
Max Allowable Pressure: 232 psig/up to 122 deg F
Max Allowable Temperature: 842 deg F/up to 116 psig
Dimensions: 1.9 in H x 1.4 in W
Length: 2-1/2 in
Manufacturer Name: Spirax-Sarco Inc
Series: BTD52L
Application: For mains drainage applications in clean steam systems
Country of Origin: US
Standards and Approvals: AISI 316L Body
Item Features
- 16 bar g Maximum allowable pressure
- 450 deg C Maximum allowable temperature
- 24 bar g Maximum cold hydraulic test pressure
- PN16 Body design condition
- Disposal: The product is recyclable, no ecological hazard is anticipated with the disposal of this product, providing due care is taken
- Inline horizontal piping configuration
