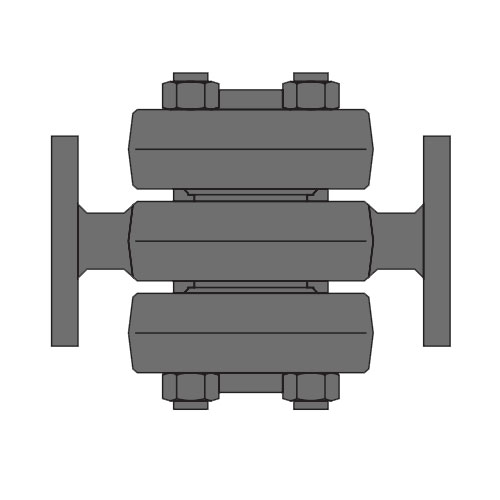

Spirax Sarco TD120M Flanged Thermodynamic Steam Trap

Spirax Sarco 1506292 TD120M High Pressure Horizontal Thermodynamic Steam Trap With Replaceable Seat, 1 in Nominal, Flanged End Style, 0 to 525 deg C, 220 bar g Pressure, Forged Alloy Steel

CBPN: 183306

MPN:1506292

Price:
$7929.74 / EA

DESCRIPTION

Spirax Sarco Thermodynamic Steam Trap, High Pressure Horizontal, Series: TD120M, 1 in Nominal, Flanged End Style, 260 mm Length, 220 bar g Pressure, Forged Alloy Steel, 0 to 525 deg C

The TD120M is a maintainable high pressure Thermodynamic Steam Trap with integral strainer and a replaceable seat to ease maintenance, which can be supplied in 1/2 in, 3/4 in and 1 in sizes with socket weld, butt weld or flanged connections. It has low capacity specifically designed for superheated mains drainage applications up to 250 bar g.

Spirax Sarco 1506292 TD120M High Pressure Horizontal Thermodynamic Steam Trap With Replaceable Seat, 1 in Nominal, Flanged End Style, 0 to 525 deg C, 220 bar g Pressure, Forged Alloy Steel

CBPN: 183306

MPN:1506292

Price:
$7929.74 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Thermodynamic Steam Trap, High Pressure Horizontal, Series: TD120M, 1 in Nominal, Flanged End Style, 260 mm Length, 220 bar g Pressure, Forged Alloy Steel, 0 to 525 deg C

The TD120M is a maintainable high pressure Thermodynamic Steam Trap with integral strainer and a replaceable seat to ease maintenance, which can be supplied in 1/2 in, 3/4 in and 1 in sizes with socket weld, butt weld or flanged connections. It has low capacity specifically designed for superheated mains drainage applications up to 250 bar g.

Specifications

Brand: Spirax Sarco
Weight: 47.8 lbs
Nominal Size: 1 in
End Style: ANSI 1500/900 Flange
Material: Carbon Steel
Max Operating Pressure: 3190 psig
Max Allowable Pressure: 3190 psig/up to 572 deg F
Max Allowable Temperature: 1022 deg F/up to 1160 psig
Length: 260 mm
Manufacturer Name: Spirax-Sarco Inc
Series: TD120M
Type: High Pressure Horizontal
Standards and Approvals: ANSI Class 900/1500 | ASTM A182 Grade F22 | EN 1092

Resources

PDF icon
Catalog
PDF icon
Instruction/Installation Manual
PDF icon
Specification Sheet

Spirax Sarco 1506292 Spare Parts

Spirax Sarco TD120M Gasket Set

Spirax Sarco 1506083 Gasket Set, For Use With: Model TD120M 1/2 to 1 in Thermo-Dynamic® High Pressure Steam Trap with Replaceable Seat

CBPN:

208879

MPN:

1506083

Check Availability
Price:
$263.00 / EA
Spirax Sarco TD120M Spare Parts

Spirax Sarco 1506085 Maintenance Kit, For Use With: Model TD120M 1/2 to 1 in Thermo-Dynamic® High Pressure Steam Trap with Replaceable Seat

CBPN:

182316

MPN:

1506085

In Stock: 12
Price:
$1764.00 / EA
Spirax Sarco TD120 Cover Gasket

Spirax Sarco 1500083 Cover Gasket Set, For Use With: Model TD120 1/2 to 1 in Thermo-Dynamic® Steam Trap with Replaceable Seat, Stainless Steel

CBPN:

123867

MPN:

1500083

In Stock: 1
Price:
$253.00 / EA
Spirax Sarco TD120M Spare Parts

Spirax Sarco 1500080 Internals Set, For Use With: Model TD120 1/2 to 1 in Thermo-Dynamic® Steam Trap with Replaceable Seat

CBPN:

18907

MPN:

1500080

Check Availability
Price:
$1027.00 / EA
Spirax Sarco TD120M Studs and Nuts

Spirax Sarco 1500081 Set of Cover Studs and Nuts for Thermodynamic Steam Trap, Model TD120M & TD120, Sizes 1/2, 3/4, and 1"

CBPN:

123865

MPN:

1500081

Check Availability
Price:
$931.00 / EA
