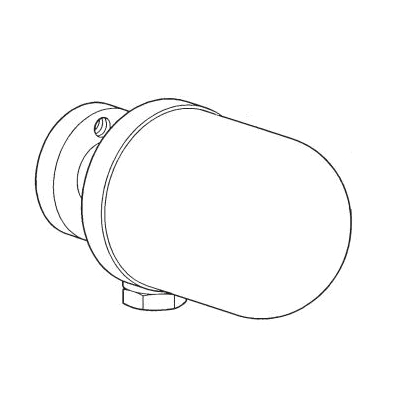

Spirax Sarco 1465700, UFT32-32 Universal Float and Thermostatic Steam Trap, 752 deg F Allowable, 725 psig Allowable, Stainless Steel
CBPN: 200238
MPN:1465700
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, Universal, Series: UFT32, 725 psig Allowable, Stainless Steel, 752 deg F Allowable
The UFT Series of Traps is an austenitic stainless steel maintenance free sealed ball float steam trap with an integral automatic air venting capability. The UFT is designed for differential steam pressures up to 465 psig. When installed with a suitable pipeline connector the UFT can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged end connections.
Spirax Sarco 1465700, UFT32-32 Universal Float and Thermostatic Steam Trap, 752 deg F Allowable, 725 psig Allowable, Stainless Steel
CBPN: 200238
MPN:1465700
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, Universal, Series: UFT32, 725 psig Allowable, Stainless Steel, 752 deg F Allowable
The UFT Series of Traps is an austenitic stainless steel maintenance free sealed ball float steam trap with an integral automatic air venting capability. The UFT is designed for differential steam pressures up to 465 psig. When installed with a suitable pipeline connector the UFT can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged end connections.
Specifications
Item Features
- ANSI/ASME 300 maximum body design condition
- Designed for a maximum cold hydraulic test pressure of 948 psig
