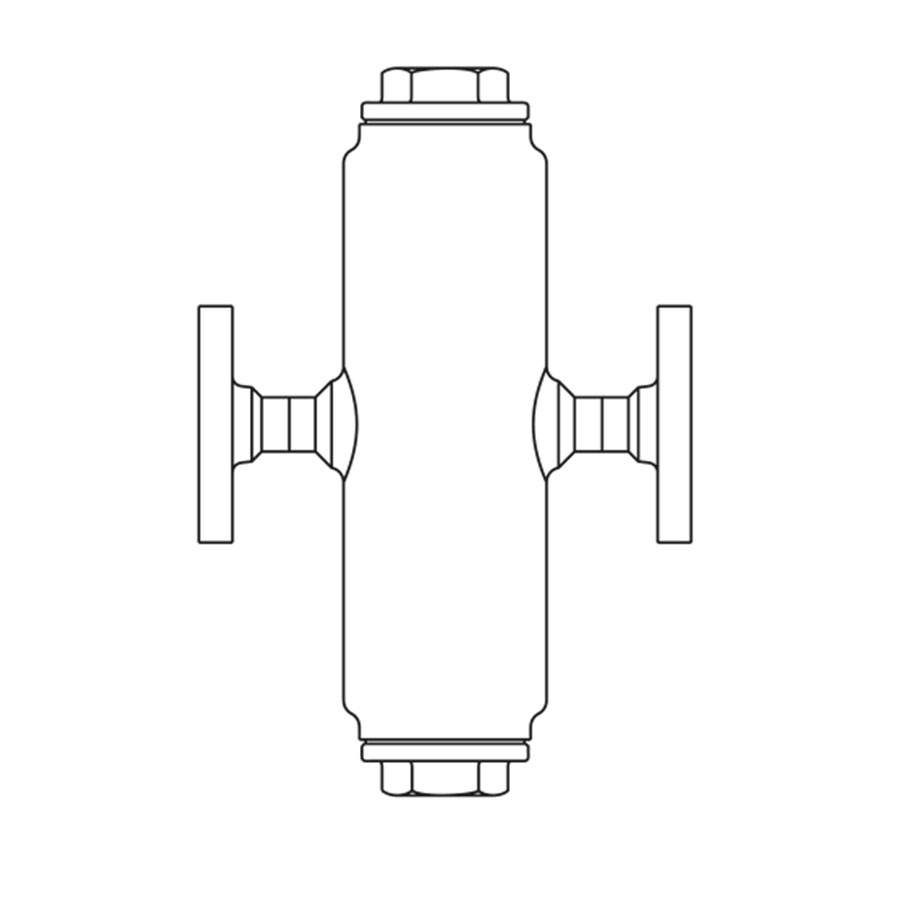

Spirax Sarco 1388092, S6 Separator, 2 in, ANSI 150 Flanged, 165 psig Operating
CBPN: 122240
MPN:1388092
Price:
$12000.17 / EA
DESCRIPTION
Spirax Sarco Separator, 2 in Nominal, ANSI 150 Flanged, 165 psig Operating, 2.68 in Drain, 32 to 797 deg F Operating, 316L Austenitic Stainless Steel Body, 13.4 in L x 22 in H
The S6 is an austenitic stainless steel (316L) baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.
Specifications
Brand: Spirax Sarco
Weight: 64 lbs
Nominal Size: 2 in
End Style: ANSI 150 Flanged
Pressure Rating: 165 psig Operating
Body Material: 316L Austenitic Stainless Steel
Dimensions: 13.4 in L x 22 in H
Drain Connection: 2.68 in
Manufacturer Name: Spirax-Sarco Inc
Series: S6
Temperature Rating: 32 to 797 deg F Operating
Country of Origin: US
Standards and Approvals: ASTM A351 CF3M Body
Item Features
- 725 psig at 122 deg F maximum allowable pressure
- 14 to 797 deg F at 406 psig maximum allowable temperature
- 1111 psig maximum cold hydraulic test pressure
- Reduce wet steam
- Maintain heat transfer efficiency
- Reduce erosion and corrosion in your steam system
- Reduce pipework and heating surface scaling
