Spirax Sarco 1386097, S5 Separator, 2 in, ANSI 300 Flanged, 600 psig Operating
CBPN: 111274
MPN:1386097
Price:
$4609.15 / EA
DESCRIPTION
Spirax Sarco Separator, 2 in Nominal, ANSI 300 Flanged, 600 psig Operating, 2.7 in Drain, 32 to 797 deg F Operating, Carbon Steel Body, 13.4 in L x 22 in H

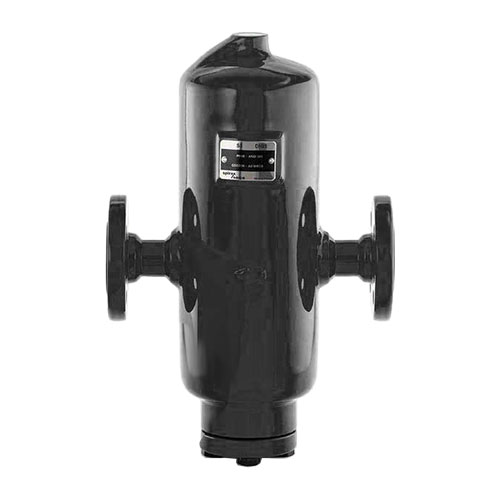

The S5 is a carbon steel baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.
Spirax Sarco 1386097, S5 Separator, 2 in, ANSI 300 Flanged, 600 psig Operating
CBPN: 111274
MPN:1386097
Price:
$4609.15 / EA
DESCRIPTION
Spirax Sarco Separator, 2 in Nominal, ANSI 300 Flanged, 600 psig Operating, 2.7 in Drain, 32 to 797 deg F Operating, Carbon Steel Body, 13.4 in L x 22 in H
The S5 is a carbon steel baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.
Specifications
Brand: Spirax Sarco
Weight: 64 lbs
Nominal Size: 2 in
End Style: ANSI 300 Flanged
Pressure Rating: 600 psig Operating
Body Material: Carbon Steel
Dimensions: 13.4 in L x 22 in H
Drain Connection: 2.7 in
Manufacturer Name: Spirax-Sarco Inc
Series: S5
Temperature Rating: 32 to 797 deg F Operating
Country of Origin: US
Standards and Approvals: ASTM A216 WCB Body | European Pressure Equipment Directive 97/23/EC
Item Features
- 725 psig at 122 deg F maximum allowable pressure
- 797 deg F at 406 psig maximum allowable temperature
- 1111 psig maximum cold hydraulic test pressure
- Reduce wet steam
- Maintain heat transfer efficiency
- Reduce erosion and corrosion in your steam system
- Reduce pipework and heating surface scaling
