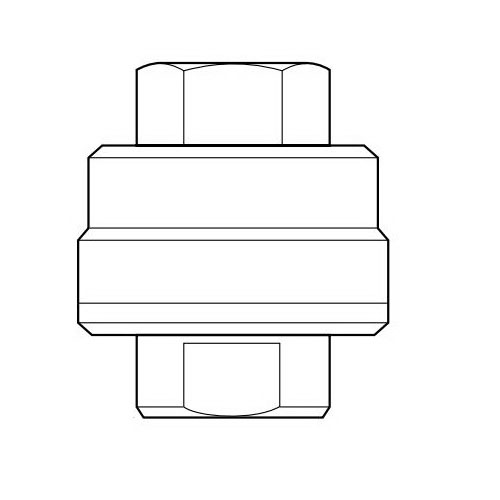

Spirax Sarco 1252190, MST21H Balanced Pressure Thermostatic Steam Trap, 3/4 in, FNPT, 518 deg F, 21 bar, Stainless Steel
CBPN: 108729
MPN:1252190
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure, 3/4 in Nominal, NPT, 2.7 in Length, 21 bar, Stainless Steel, 518 deg F, 1.8 in W
The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 18 deg F (10 deg C) below saturated steam temperature on the standard Fill trap. Up to 518 deg F (270 deg C) and water hammer can be tolerated by this trap. The MST21 can be disassembled for servicing. Trap may be installed in horizontal or vertical pipelines. Can be used on tracing, drips, sterilizers and a low capacity air vent.
Spirax Sarco 1252190, MST21H Balanced Pressure Thermostatic Steam Trap, 3/4 in, FNPT, 518 deg F, 21 bar, Stainless Steel
CBPN: 108729
MPN:1252190
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure, 3/4 in Nominal, NPT, 2.7 in Length, 21 bar, Stainless Steel, 518 deg F, 1.8 in W
The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 18 deg F (10 deg C) below saturated steam temperature on the standard Fill trap. Up to 518 deg F (270 deg C) and water hammer can be tolerated by this trap. The MST21 can be disassembled for servicing. Trap may be installed in horizontal or vertical pipelines. Can be used on tracing, drips, sterilizers and a low capacity air vent.
Specifications
Item Features
- High capacity for special applications
- This product fully complies with the requirements of the European pressure equipment directive 97/23/EC
- 25 bar g 300 deg C Maximum allowable pressure
- 400 deg C at 23 bar g Maximum allowable temperature
- PN25 Body design condition
- 0 deg C Minimum allowable temperature
- 21 bar g at 235 deg C Maximum operating pressure
- 235 deg C at 21 bar g Maximum operating temperature
- 38 bar g Maximum cold hydraulic test pressure
- Inline vertical or horizontal piping configuration
