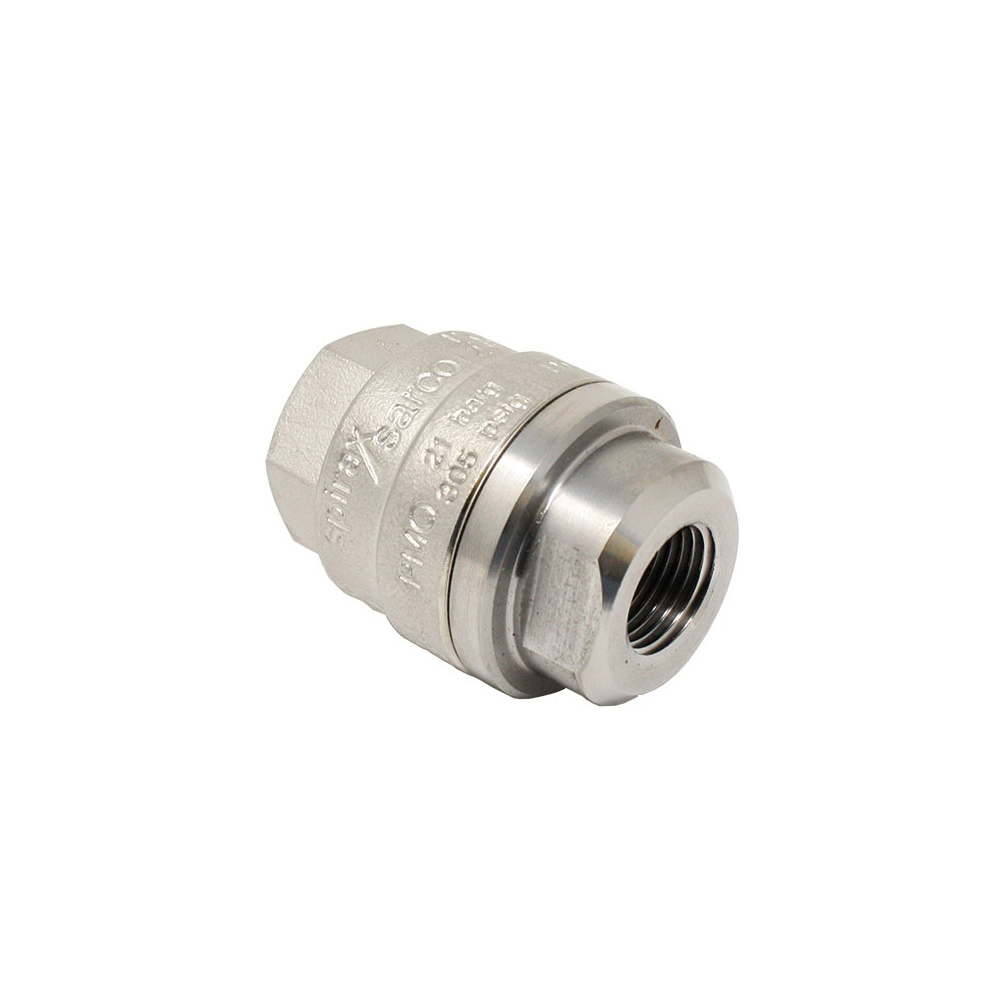

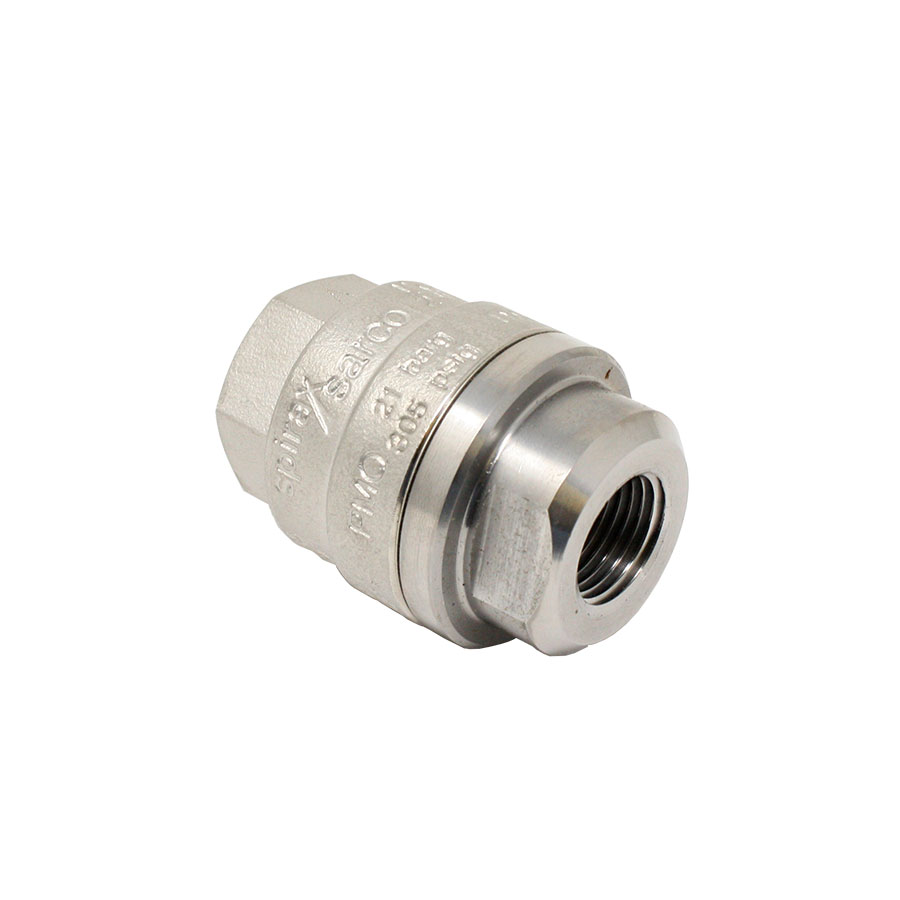

Spirax Sarco MST21H Balanced Pressure Thermostatic Steam Trap

Spirax Sarco 1251890, MST21H Balanced Pressure Thermostatic Steam Trap, 1/2 in, FNPT, 235 deg C, 21 bar, Stainless Steel

CBPN:71188

MPN:1251890

Price:
$533.26 / EA

DESCRIPTION

Spirax Sarco Thermostatic Steam Trap, Balanced Pressure, 1/2 in Nominal, NPT, 2.4 in Length, 21 bar, Stainless Steel, 235 deg C, 1.8 in W

The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 18 deg F (10 deg C) below saturated steam temperature on the standard Fill trap. Up to 518 deg F (270 deg C) and water hammer can be tolerated by this trap. The MST21 can be disassembled for servicing. Trap may be installed in horizontal or vertical pipelines. Can be used on tracing, drips, sterilizers and a low capacity air vent.

Spirax Sarco 1251890, MST21H Balanced Pressure Thermostatic Steam Trap, 1/2 in, FNPT, 235 deg C, 21 bar, Stainless Steel

CBPN:71188

MPN:1251890

Price:
$533.26 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Thermostatic Steam Trap, Balanced Pressure, 1/2 in Nominal, NPT, 2.4 in Length, 21 bar, Stainless Steel, 235 deg C, 1.8 in W

The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 18 deg F (10 deg C) below saturated steam temperature on the standard Fill trap. Up to 518 deg F (270 deg C) and water hammer can be tolerated by this trap. The MST21 can be disassembled for servicing. Trap may be installed in horizontal or vertical pipelines. Can be used on tracing, drips, sterilizers and a low capacity air vent.

Specifications

BrandSpirax Sarco
Weight1.1 lbs
Nominal Size1/2 in
End StyleFNPT
Max Operating Pressure304 psig
Max Allowable Pressure362 psig/up to 248 deg F
Max Allowable Temperature752 deg F/up to 188 psig
MaterialStainless Steel
Dimensions1.8 in W
Length2.4 in
Manufacturer NameSpirax-Sarco Inc
SeriesMST21H
TypeBalanced Pressure
ApplicationSteam main drainage and steam tracing
Standards and ApprovalsASTM A743 CF16Fa Body | Pressure Equipment Directive 97/23/EC

Item Features

  • High capacity for special applications
  • This product fully complies with the requirements of the European pressure equipment directive 97/23/EC
  • 25 bar g 300 deg C Maximum allowable pressure
  • 400 deg C at 23 bar g Maximum allowable temperature
  • PN25 Body design condition
  • 0 deg C Minimum allowable temperature
  • 21 bar g at 235 deg C Maximum operating pressure
  • 235 deg C at 21 bar g Maximum operating temperature
  • 38 bar g Maximum cold hydraulic test pressure
  • Inline vertical or horizontal piping configuration
