Spirax Sarco 1106290, SIB45/6 Sealed Inverted Bucket Steam Trap, 1 in, NPT, 450 deg C, 290 psig, Stainless Steel
CBPN: 209238
MPN:1106290
Price:
$2081.17 / EA
DESCRIPTION
Spirax Sarco Sealed Inverted Bucket Steam Trap, 1 in Nominal, NPT, 230 mm Length, 290 psig, Stainless Steel, 450 deg C

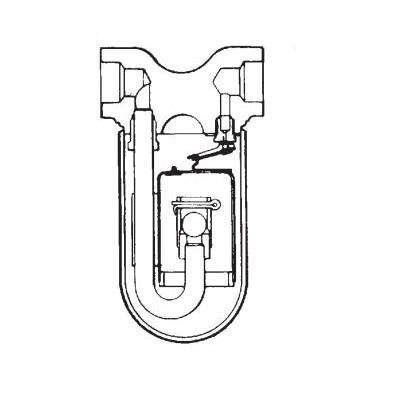

The SIB45 is an all stainless steel sealed inverted bucket steam trap. It is provided with pressure change assemblies for pressure differentials between 0.5 and 45 bar. Traps for 45 bar are provided with an in-built check valve as standard.
Spirax Sarco 1106290, SIB45/6 Sealed Inverted Bucket Steam Trap, 1 in, NPT, 450 deg C, 290 psig, Stainless Steel
CBPN: 209238
MPN:1106290
Price:
$2081.17 / EA
DESCRIPTION
Spirax Sarco Sealed Inverted Bucket Steam Trap, 1 in Nominal, NPT, 230 mm Length, 290 psig, Stainless Steel, 450 deg C
The SIB45 is an all stainless steel sealed inverted bucket steam trap. It is provided with pressure change assemblies for pressure differentials between 0.5 and 45 bar. Traps for 45 bar are provided with an in-built check valve as standard.
Specifications
Brand: Spirax Sarco
Weight: 6.5 lbs
Nominal Size: 1 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 290 psig
Max Allowable Pressure: 782 psig/up to 842 deg F
Max Allowable Temperature: 842 deg F/up to 782 psig
Length: 230 mm
Manufacturer Name: Spirax-Sarco Inc
Series: SIB45
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A182 F304 Body | EN 10204 3.1 | European Pressure Equipment Directive 97/23/EC
Item Features
- PN100 body design conditions
- Maximum allowable pressure: 100 barg at 37 deg C
- Maximum allowable temperature: 450 deg C at 54 barg
- 60 barg maximum operating pressure for saturated steam service
- Maximum cold hydraulic test pressure: 150 barg
- In-line horizontal piping configuration
