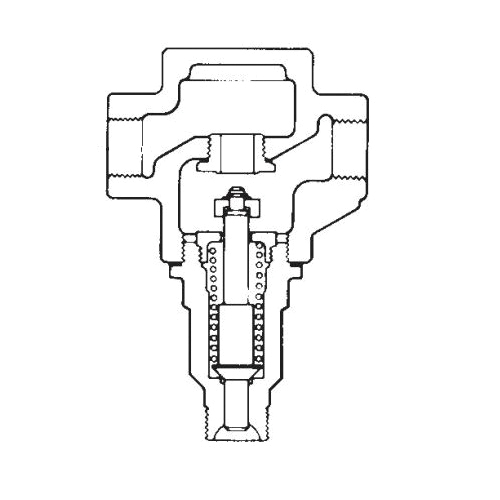

Spirax Sarco 0787092, KA 51 Direct Acting Temperature Regulator Valve, 1-1/2 in, FNPT End Style, 2 bar
CBPN: 89317
MPN:0787092
Spirax Sarco 0787092 has been discontinued by the manufacturer.
Pricing Available Upon Request
DESCRIPTION
Spirax Sarco Temperature Regulator Valve, Direct Acting, 1-1/2 in Nominal, NPT, 2 bar, Bronze Body, Stainless Steel Trim, 5.9 in L
Specifications
Brand: Spirax Sarco
Weight: 16 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Rating: 2 bar
Body Material: Bronze
Dimensions: 5.9 in L
Manufacturer Name: Spirax-Sarco Inc
Series: KA51
Trim Material: Stainless Steel
Type: Direct Acting
Application: Industrial/Commercial
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI Class IV Shut-Off | BS 1400 LG2 Body
Item Features
- Maximum allowable temperature: 500 deg F at 0 to 152 psig
- 27.6 Cv
- 22.5 deg p-band
- Differential pressure: 29 psi
- 2-port
- Maximum allowable pressure: 362 psig at 248 deg F
- 9 mm stroke
- 2.4 in inlet center to top
- Horizontal installation
- Normally open single seat with screwed connections
- On liquid applications, the permissible maximum differential pressure may be affected by high static pressure
