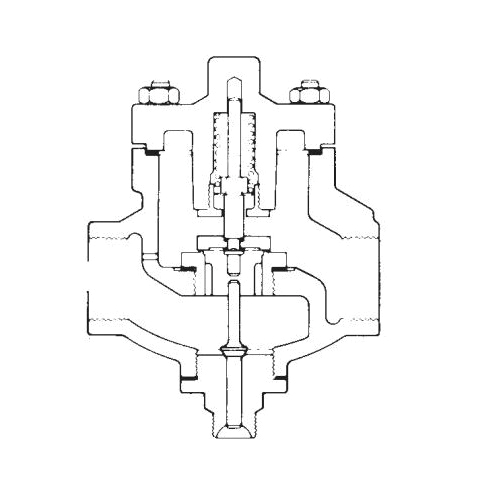

Spirax Sarco 0786390, KX 51 Reverse Acting Temperature Regulator Valve With Fixed Bleed, 1-1/4 in, FNPT End Style, 2.3 bar
CBPN: 239464
MPN:0786390
Pricing Available Upon Request
DESCRIPTION
Spirax Sarco Temperature Regulator Valve, Reverse Acting, 1-1/4 in Nominal, NPT, 2.3 bar, Bronze Body, Stainless Steel Trim, 5.6 in L
Spirax Sarco 0786390, KX 51 Reverse Acting Temperature Regulator Valve With Fixed Bleed, 1-1/4 in, FNPT End Style, 2.3 bar
CBPN: 239464
MPN:0786390
Pricing Available Upon Request
DESCRIPTION
Spirax Sarco Temperature Regulator Valve, Reverse Acting, 1-1/4 in Nominal, NPT, 2.3 bar, Bronze Body, Stainless Steel Trim, 5.6 in L
Specifications
Brand: Spirax Sarco
Weight: 13.9 lbs
Nominal Size: 1-1/4 in
End Style: FNPT
Pressure Rating: 2.3 bar
Body Material: Bronze
Dimensions: 5.6 in L
Manufacturer Name: Spirax-Sarco Inc
Series: KX51
Trim Material: Stainless Steel
Type: Reverse Acting
Application: Industrial/Commercial
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI Class IV Shut-Off | BS 1400 LG2 Body
Item Features
- Maximum allowable temperature: 500 deg F at 0 to 152 psig
- 19.2 Cv
- 20 deg p-band
- Differential pressure: 50 psi
- 2-port
- Maximum allowable pressure: 362 psig at 248 deg F
- 8 mm stroke
- 6 in inlet center to top
- Horizontal installation
- Normally closed, opens with temperature rise for cooling, single seat
- Adjustable bleed 1/8 in
- On liquid applications, the permissible maximum differential pressure may be affected by high static pressure
- provides bypass
