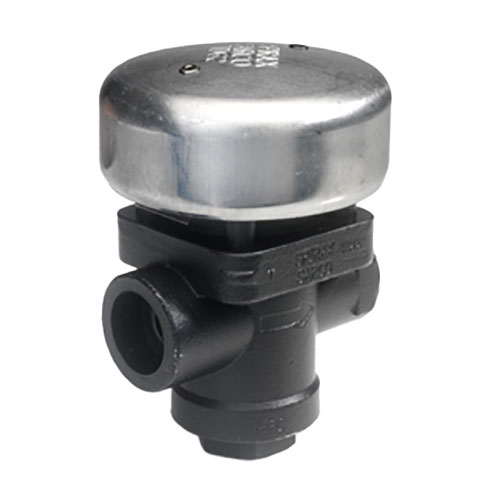

Spirax Sarco 0686561, TD62LM Low Capacity Thermo-Dynamic Steam Trap With Replaceable seat, 1/2 in, NPT, 977 deg F, 900 psi, Steel Alloy
CBPN: 222408
MPN:0686561
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, Low Capacity, 1/2 in Nominal, NPT, 3.6 in Length, 900 psi, Steel Alloy, 977 deg F, 3.6 in W
The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 barg. The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperatures, wind, rain etc.
Spirax Sarco 0686561, TD62LM Low Capacity Thermo-Dynamic Steam Trap With Replaceable seat, 1/2 in, NPT, 977 deg F, 900 psi, Steel Alloy
CBPN: 222408
MPN:0686561
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, Low Capacity, 1/2 in Nominal, NPT, 3.6 in Length, 900 psi, Steel Alloy, 977 deg F, 3.6 in W
The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 barg. The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperatures, wind, rain etc.
Specifications
Item Features
- Minimum pressure for satisfactory operation is 120 psig, 8 bar g, Maximum back pressure should not exceed 50% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
- 1500 psig Maximum allowable pressure
- 977 deg F Maximum allowable temperature
- Class 3000
- 2250 psig Cold hydraulic test pressure
- 120 psig Minimum pressure for satisfactory operation
- Inline horizontal piping configuration
