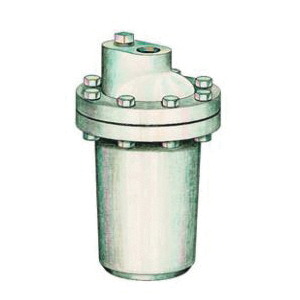

Spriax Sarco 200 Series Inverted Bucket Steam Trap

Spirax Sarco 0672691, 216/40 Inverted Bucket Steam Trap With Stainless Steel Bucket and Bottom Inlet Top - Top Outlet, 2 in, FNPT, 210 deg C, 60 psig, Cast Iron

CBPN: 222260

MPN:0672691

Price:

$4236.00 / EA

Oversize or overweight

This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

QTY

DESCRIPTION

Spirax Sarco Inverted Bucket Steam Trap, 2 in Nominal Size, FNPT, 432 mm Length, 60 psig, Cast Iron, 210 deg C, 286 mm W

The Spirax Sarco 200 Series of inverted bucket steam traps are designed for installation in vertical pipework. With cast iron bodies and bolted cover they are maintainable and offer a very wide range of capacities, in applications up to 17 barg.

Spirax Sarco 0672691, 216/40 Inverted Bucket Steam Trap With Stainless Steel Bucket and Bottom Inlet Top - Top Outlet, 2 in, FNPT, 210 deg C, 60 psig, Cast Iron

CBPN: 222260

MPN:0672691

Price:

$4236.00 / EA

Oversize or overweight

This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

QTY

DESCRIPTION

Spirax Sarco Inverted Bucket Steam Trap, 2 in Nominal Size, FNPT, 432 mm Length, 60 psig, Cast Iron, 210 deg C, 286 mm W

Specifications

Brand: Spirax Sarco

Weight: 96 lbs

Nominal Size: 2 in

End Style: FNPT

Material: Cast Iron

Max Operating Pressure: 60 psig

Max Allowable Pressure: 319 psig/up to 410 deg F

Max Allowable Temperature: 410 deg F/up to 319 psig

Dimensions: 286 mm W

Length: 432 mm

Manufacturer Name: Spirax-Sarco Inc

Item Features

Note: maximum operating conditions depend on the orifice size
PN16 body design conditions
Maximum operating pressure: 22 barg at 210 deg C
Maximum cold hydraulic test pressure: 34 barg
Disposal: The product is recyclable, no ecological hazard is anticipated with disposal of this product, providing due care is taken
In-line vertical piping configuration
Steel internal tube
