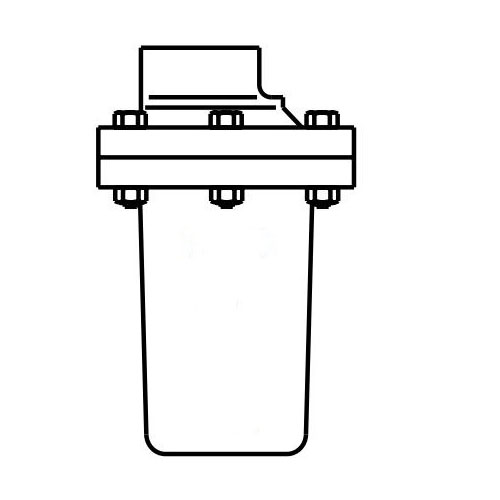

Spirax Sarco 0671799, 213/14 Inverted Bucket Steam Trap, 1 in, FNPT, 210 deg C, 180 psig, Cast Iron
CBPN: 222253
MPN:0671799
Price:
$1495.13 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, 1 in Nominal Size, FNPT, 269 mm Length, 180 psig, Cast Iron, 210 deg C, 188 mm W
The Spirax Sarco® 200 Series of inverted bucket steam traps are designed for installation in vertical pipework. With cast iron bodies and bolted cover they are maintainable and offer a very wide range of capacities, in applications up to 17 bar g.
Spirax Sarco 0671799, 213/14 Inverted Bucket Steam Trap, 1 in, FNPT, 210 deg C, 180 psig, Cast Iron
CBPN: 222253
MPN:0671799
Price:
$1495.13 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, 1 in Nominal Size, FNPT, 269 mm Length, 180 psig, Cast Iron, 210 deg C, 188 mm W
The Spirax Sarco® 200 Series of inverted bucket steam traps are designed for installation in vertical pipework. With cast iron bodies and bolted cover they are maintainable and offer a very wide range of capacities, in applications up to 17 bar g.
Specifications
Brand: Spirax Sarco
Weight: 27 lbs
Nominal Size: 1 in
End Style: FNPT
Material: Cast Iron
Max Operating Pressure: 180 psig
Max Allowable Pressure: 319 psig/up to 410 deg F
Max Allowable Temperature: 410 deg F/up to 319 psig
Dimensions: 188 mm W
Length: 269 mm
Manufacturer Name: Spirax-Sarco Inc
Country of Origin: US
Standards and Approvals: BS 1387 Iternal Tube | DIN 1691 GG 20 Body
Item Features
- 12.5 bar Maximum differential pressure
- 22 barg at up to 210 deg C Maximum allowable pressure
- PN16 Body design condition
- 210 deg C at 22 bar g Maximum operating temperature
- 34 bar g Maximum cold hyraulic test pressure
- Disposal: The product is recyclable, no ecological hazard is anticipated with disposal of this product, providing due care is taken
- Inline vertical piping configuration
- Steel internal tube
