Spirax Sarco 0671791, 213/16 Inverted Bucket Steam Trap With Stainless Steel Bucket and Bottom Inlet Top - Top Outlet, 1 in, FNPT, 210 deg C, 120 psig, Cast Iron
CBPN: 63066
MPN:0671791
Price:
$1643.00 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, 1 in Nominal Size, FNPT, 269 mm Length, 120 psig, Cast Iron, 210 deg C, 188 mm W
The Spirax Sarco 200 Series of inverted bucket steam traps are designed for installation in vertical pipework. With cast iron bodies and bolted cover they are maintainable and offer a very wide range of capacities, in applications up to 17 barg.
Spirax Sarco 0671791, 213/16 Inverted Bucket Steam Trap With Stainless Steel Bucket and Bottom Inlet Top - Top Outlet, 1 in, FNPT, 210 deg C, 120 psig, Cast Iron
CBPN: 63066
MPN:0671791
Price:
$1643.00 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, 1 in Nominal Size, FNPT, 269 mm Length, 120 psig, Cast Iron, 210 deg C, 188 mm W
The Spirax Sarco 200 Series of inverted bucket steam traps are designed for installation in vertical pipework. With cast iron bodies and bolted cover they are maintainable and offer a very wide range of capacities, in applications up to 17 barg.
Specifications
Brand: Spirax Sarco
Weight: 26.1 lbs
Nominal Size: 1 in
End Style: FNPT
Material: Cast Iron
Max Operating Pressure: 120 psig
Max Allowable Pressure: 319 psig/up to 410 deg F
Max Allowable Temperature: 410 deg F/up to 319 psig
Dimensions: 188 mm W
Length: 269 mm
Manufacturer Name: Spirax-Sarco Inc
Item Features
- Note: maximum operating conditions depend on the orifice size
- PN16 body design conditions
- Maximum operating pressure: 22 barg at 210 deg C
- Maximum cold hydraulic test pressure: 34 barg
- Disposal: The product is recyclable, no ecological hazard is anticipated with disposal of this product, providing due care is taken
- In-line vertical piping configuration
- Steel internal tube
Resources

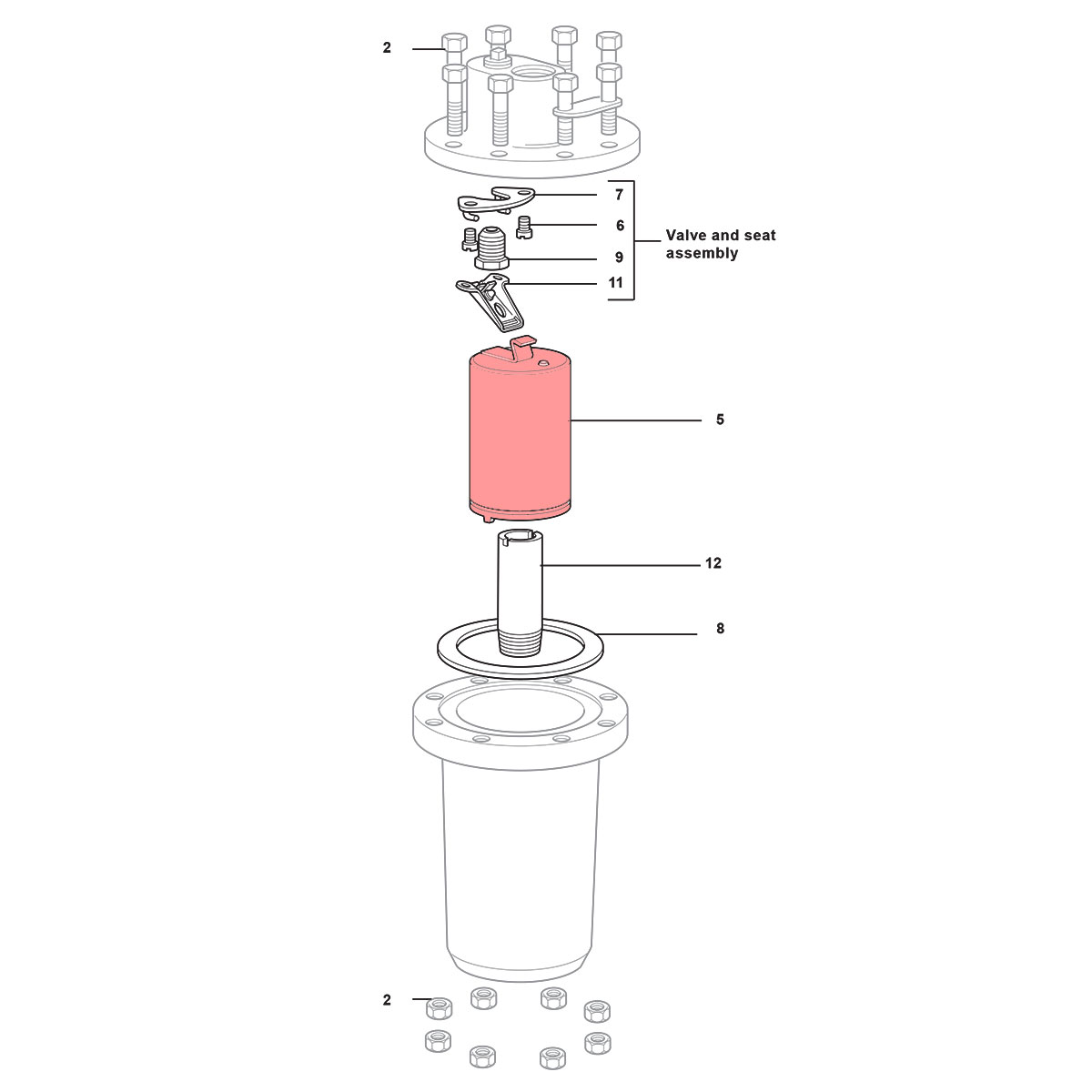

Spirax Sarco 0671791 Spare Parts
CBPN:
239146
MPN:
0671780
Check Availability
Price:
$673.0 / EA
CBPN:
239148
MPN:
0671681
Check Availability
Price:
$509.0 / EA
CBPN:
239145
MPN:
0671682
Check Availability
Price:
$114.0 / EA
CBPN:
238934
MPN:
0957151
Check Availability
Price:
$83.55 / EA
