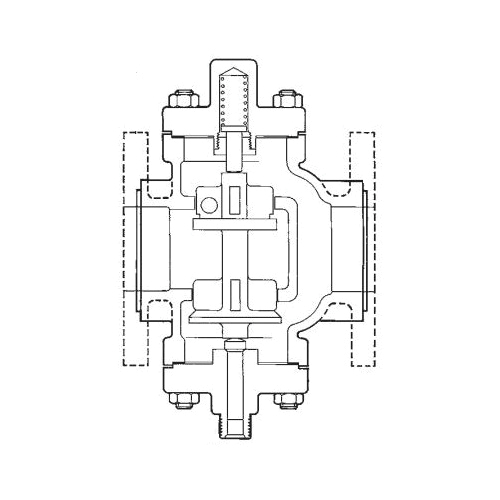

Spirax Sarco 0497391, NS Direct Acting Temperature Control Regulator Valve, 2-1/2 in, FNPT End Style, 10 bar
CBPN: 32043
MPN:0497391
Pricing Available Upon Request
DESCRIPTION
Spirax Sarco Temperature Control Regulator Valve, Direct Acting, 2-1/2 in Nominal, NPT, 10 bar, Bronze Body, Bronze Trim, 6.7 in L
Spirax Sarco 0497391, NS Direct Acting Temperature Control Regulator Valve, 2-1/2 in, FNPT End Style, 10 bar
CBPN: 32043
MPN:0497391
Pricing Available Upon Request
DESCRIPTION
Spirax Sarco Temperature Control Regulator Valve, Direct Acting, 2-1/2 in Nominal, NPT, 10 bar, Bronze Body, Bronze Trim, 6.7 in L
Specifications
Brand: Spirax Sarco
Weight: 18 lbs
Nominal Size: 2-1/2 in
End Style: FNPT
Pressure Rating: 10 bar
Body Material: Bronze
Dimensions: 6.7 in L
Manufacturer Name: Spirax-Sarco Inc
Series: NS Series
Trim Material: Bronze
Type: Direct Acting
Application: Industrial/Commercial
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI Class II | BS 1400 LG2 Body
Item Features
- Maximum allowable temperature: 500 deg F at 0 to 152 psig
- 75.6 Cv
- 24 deg p-band
- Differential pressure: 150 psi
- 2-port
- Maximum allowable pressure: 362 psig at 248 deg F
- ANSI Class II shut-off
- 9.5 mm stroke
- 5.9 in inlet center to top
- Horizontal installation
- Normally open, closes with temperature rise for heating, double seat
- On liquid applications, the permissible maximum differential pressure may be affected by high static pressure
