Spirax Sarco 0470190 TW Series 3-Way Mixing/Diverting Regulator, 3/4 in, FNPT End Style, -20 to 200 deg C Operating
CBPN: 178926
MPN:0470190
Price:
$1842.75 / EA
DESCRIPTION
Spirax Sarco Mixing/Diverting Regulator, 3-Way, Series: TW Series, 3/4 in Nominal, NPT, -20 to 200 deg C Operating, 3-Way Port, Media: Liquid, Brass Trim, Bronze

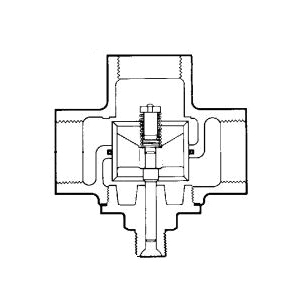

The TW is a 3-way self actuated temperature control valve which may be used on liquid systems as either a diversion valve for heating or cooling, or a mixing valve for blending hot and cold water.
Spirax Sarco 0470190 TW Series 3-Way Mixing/Diverting Regulator, 3/4 in, FNPT End Style, -20 to 200 deg C Operating
CBPN: 178926
MPN:0470190
Price:
$1842.75 / EA
DESCRIPTION
Spirax Sarco Mixing/Diverting Regulator, 3-Way, Series: TW Series, 3/4 in Nominal, NPT, -20 to 200 deg C Operating, 3-Way Port, Media: Liquid, Brass Trim, Bronze
The TW is a 3-way self actuated temperature control valve which may be used on liquid systems as either a diversion valve for heating or cooling, or a mixing valve for blending hot and cold water.
Specifications
Brand: Spirax Sarco
Weight: 2.7 lbs
Nominal Size: 3/4 in
End Style: FNPT
Temperature Rating: -20 to 200 deg C Operating
Handle Type: Bronze
Manufacturer Name: Spirax-Sarco Inc
Media: Liquid
Port Type: 3-Way
Series: TW Series
Trim Material: Brass
Type: 3-Way
Application: Industrial or commercial applications using water as a heating or cooling medium
Standards and Approvals: CC491 KM Body
Item Features
- Maximum differential pressure: 50 psi
- Maximum allowable pressure: 362 psig at 0 to 248 deg F
- The valve should be installed in a horizontal section of pipe with the control system connection pointing vertically downward
- Maximum allowable pressure: 319 psig at 0 to 392 deg F
- Maximum allowable temperature: 392 deg F at 0 to 319 psig
- 5.4 Cv
- PN25 body design conditions
- Designed for a maximum cold hydraulic test pressure of 37.5 barg
