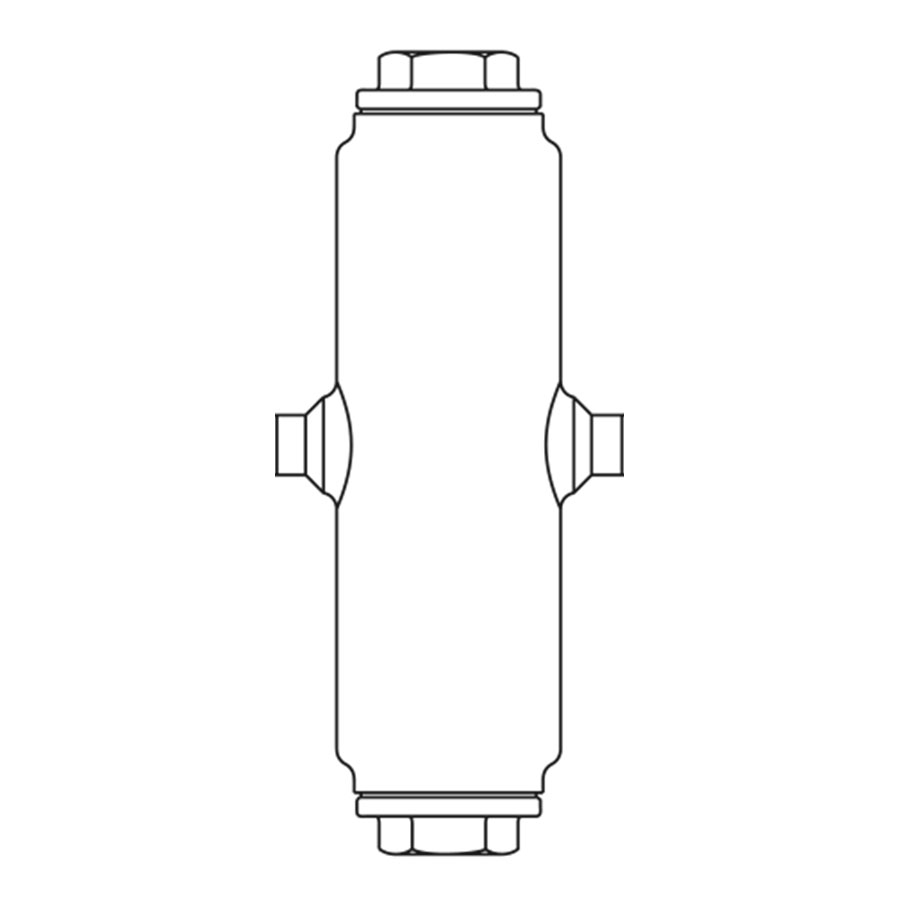

Spirax Sarco S6 Separator Illustration

Spirax Sarco 0239690, S6 Separator, 3/4 in, FNPT End Style, 495 psig Operating

CBPN: 116298

MPN:0239690

Price:
$3990.35 / EA

DESCRIPTION

Spirax Sarco Separator, 3/4 in Nominal, NPT, 495 psig Operating, 2.68 in Drain, 32 to 797 deg F Operating, 316L Austenitic Stainless Steel Body, 5.1 in L x 13.7 in H

The S6 is an austenitic stainless steel (316L) baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.

Spirax Sarco 0239690, S6 Separator, 3/4 in, FNPT End Style, 495 psig Operating

CBPN: 116298

MPN:0239690

Price:
$3990.35 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Separator, 3/4 in Nominal, NPT, 495 psig Operating, 2.68 in Drain, 32 to 797 deg F Operating, 316L Austenitic Stainless Steel Body, 5.1 in L x 13.7 in H

The S6 is an austenitic stainless steel (316L) baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.

Specifications

Brand: Spirax Sarco
Weight: 9 lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Rating: 495 psig Operating
Body Material: 316L Austenitic Stainless Steel
Dimensions: 5.1 in L x 13.7 in H
Drain Connection: 2.68 in
Manufacturer Name: Spirax-Sarco Inc
Series: S6
Temperature Rating: 32 to 797 deg F Operating
Country of Origin: US
Standards and Approvals: ASTM A351 CF3M Body

Item Features

  • 725 psig at 122 deg F maximum allowable pressure
  • 14 to 797 deg F at 406 psig maximum allowable temperature
  • 1111 psig maximum cold hydraulic test pressure
  • Reduce wet steam
  • Maintain heat transfer efficiency
  • Reduce erosion and corrosion in your steam system
  • Reduce pipework and heating surface scaling
