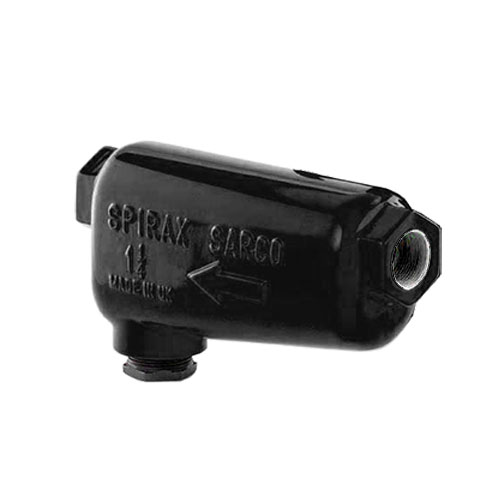

Spirax Sarco S2 Moisture Separator

Spirax Sarco 0232790, S2 Separator, 2 in, FNPT End Style, 145 psig

CBPN: 16492

MPN:0232790

Pricing Available Upon Request

DESCRIPTION

Spirax Sarco Separator, 2 in Nominal, NPT, 145 psig, 363 deg F, Ductile Iron Body, 15.6 in L

Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.

Spirax Sarco 0232790, S2 Separator, 2 in, FNPT End Style, 145 psig

CBPN: 16492

MPN:0232790

Pricing Available Upon Request

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Separator, 2 in Nominal, NPT, 145 psig, 363 deg F, Ductile Iron Body, 15.6 in L

Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.

Specifications

Brand: Spirax Sarco
Weight: 42 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Rating: 145 psig
Body Material: Ductile Iron
Dimensions: 15.6 in L
Manufacturer Name: Spirax-Sarco Inc
Series: S2
Temperature Rating: 363 deg F
Domestic/Import: Domestic
Country of Origin: US

Item Features

  • Maximum allowable pressure: 188 psig at 428 deg F and 232 psig at 0 to 248 deg F
  • Maximum allowable temperature: 428 dge F at 0 to 188 psig
  • Horizontal installation
