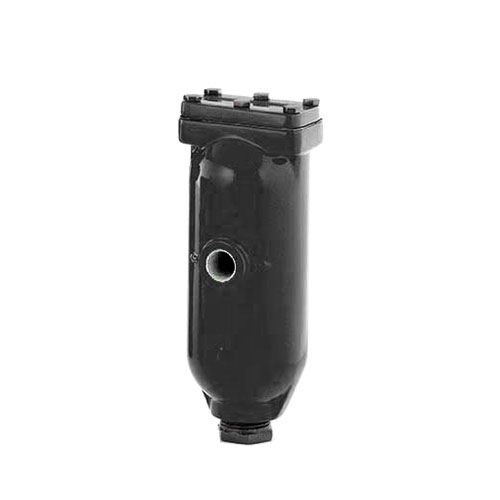

Spirax Sarco S1 Moisture Separator

Spirax Sarco 0230491, S1 Separator, 1 in, FNPT End Style, 200 psig, 1009 lb/hr Steam

CBPN: 7618

MPN:0230491

Price:
$955.50 / EA

DESCRIPTION

Spirax Sarco Separator, 1 in Nominal, NPT, 200 psig, 1009 lb/hr Steam, 388 deg F, Ductile Iron Body, 6 in L x 15 in H

Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.

Spirax Sarco 0230491, S1 Separator, 1 in, FNPT End Style, 200 psig, 1009 lb/hr Steam

CBPN: 7618

MPN:0230491

Price:
$955.50 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Separator, 1 in Nominal, NPT, 200 psig, 1009 lb/hr Steam, 388 deg F, Ductile Iron Body, 6 in L x 15 in H

Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.

Specifications

Brand: Spirax Sarco
Weight: 27 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 200 psig
Steam Capacity: 1009 lb/hr
Body Material: Ductile Iron
Dimensions: 6 in L x 15 in H
Manufacturer Name: Spirax-Sarco Inc
Series: S1
Temperature Rating: 388 deg F
Domestic/Import: Domestic
Country of Origin: US

Item Features

  • Maximum allowable pressure: 160 psig at 572 deg F and 232 psig at 0 to 248 deg F
  • Maximum allowable temperature: 572 deg F at 0 to 160 psig
  • Horizontal installation
