Spirax Sarco VB14 Vacuum Breaker

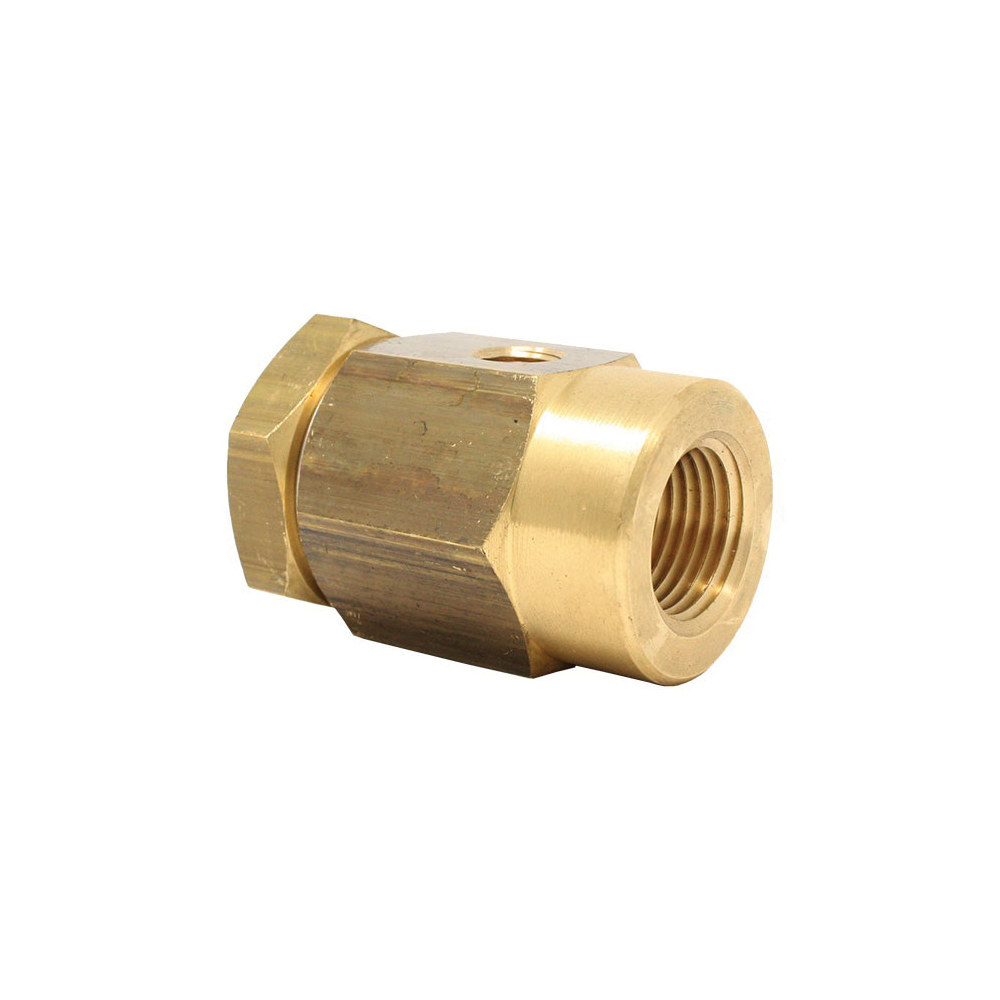

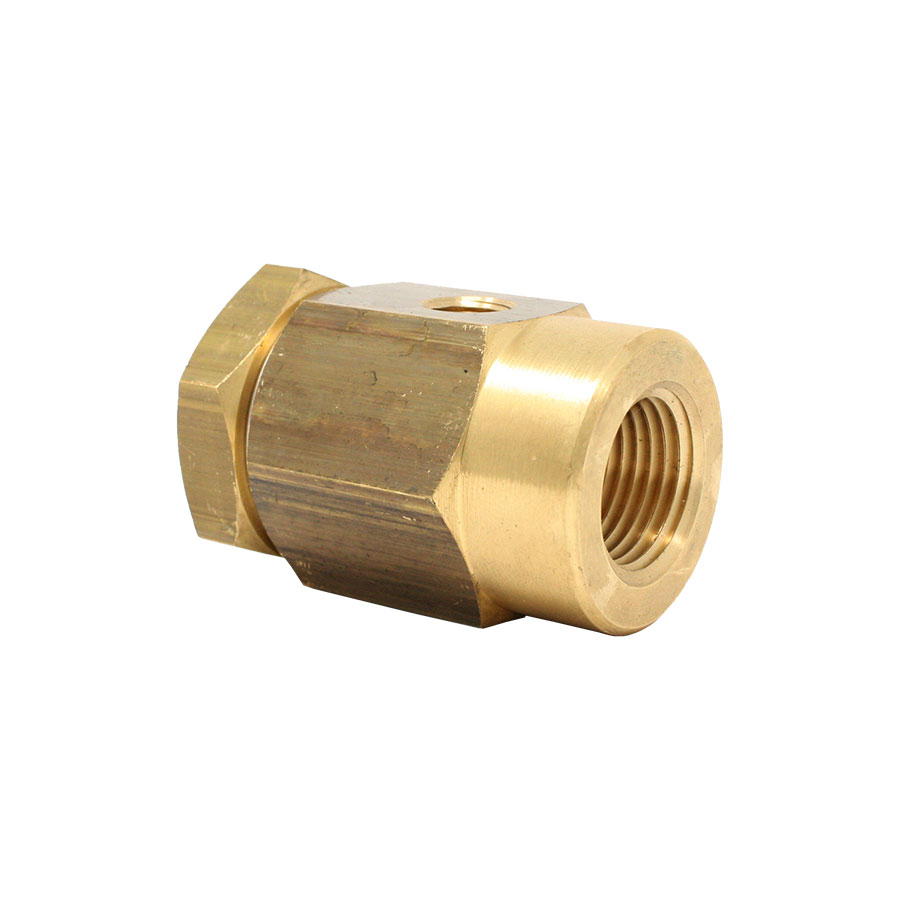

Spirax Sarco 0190190, VB14 Vacuum Breaker, 1/2 x 1/8 in, NPT, Brass Body

CBPN:7526

MPN:0190190

Price:
$209.30 / EA

DESCRIPTION

Spirax Sarco Vacuum Breaker, 1/2 x 1/8 in Nominal, NPT, 210 psig, 500 deg F, Brass Body, 1.5 in L x 2.2 in H

The VB14 is a small purpose designed vacuum breaker for general purpose applications on condensing vapor (steam) or liquid systems.

Spirax Sarco 0190190, VB14 Vacuum Breaker, 1/2 x 1/8 in, NPT, Brass Body

CBPN:7526

MPN:0190190

Price:
$209.30 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Vacuum Breaker, 1/2 x 1/8 in Nominal, NPT, 210 psig, 500 deg F, Brass Body, 1.5 in L x 2.2 in H

The VB14 is a small purpose designed vacuum breaker for general purpose applications on condensing vapor (steam) or liquid systems.

Specifications

BrandSpirax Sarco
Weight0.8lbs
Nominal Size1/2 x 1/8 in
End StyleNPT
Body MaterialBrass
Dimensions1.5 in L x 2.2 in H
Manufacturer NameSpirax-Sarco Inc
Pressure Rating210 psig
SeriesVB14
Temperature Rating500 deg F
ApplicationFor Used on Steam Inlet to Air Coils, Heat Exchangers, Spurge Systems, Jacketed Kettles, Boiler Feed Water Tanks, Chilled Water Lines and Liquid Process Lines and All of Which at One Time or Another Generate Vacuum Conditions Which Must be Relieved to Allow Proper System Operation
Standards and ApprovalsComplies with the Requirements of the European Pressure Equipment Directive 97/23/EC | CU ZN 39 PB2 Brass Body | AISI 304 Stainless Steel Gasket | CU ZN 39 PB2 Brass Cap | Z 100 CD 17 Stainless Steel Valve Check Ball | Z10 CN 18 08 Stainless Steel Valve Seat
