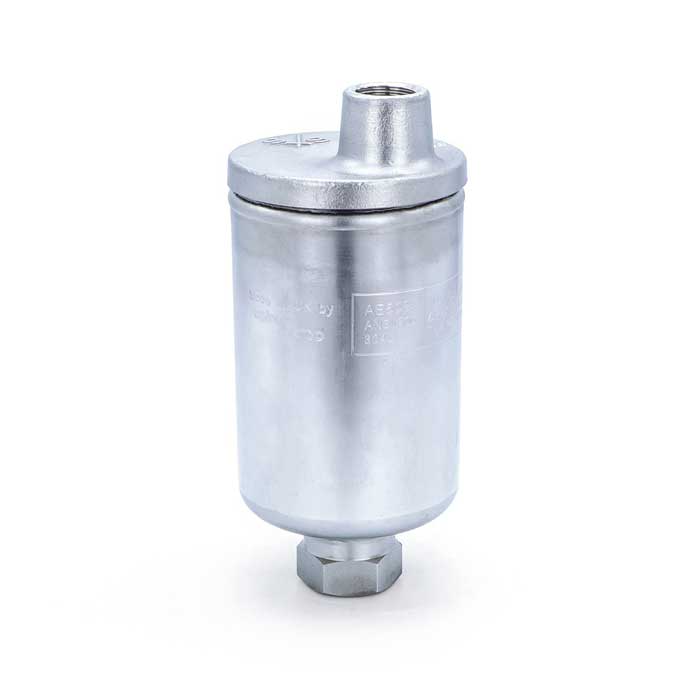

Spirax Sarco 0176090, AE50S Automatic Air and Gas Vent, 3/4 x 1/2 in, FNPT Connection, 600 psig, 800 deg F, Stainless Steel
CBPN: 65584
MPN:0176090
Price:
$1276.73 / EA
DESCRIPTION
Spirax Sarco Air and Gas Vent, Automatic, 3/4 x 1/2 in, FNPT x FNPT, 600 psig, 800 deg F, Stainless Steel
The AE50S automatic air and gas vent is designed for use on liquid systems. It has a welded construction and the body is manufactured in 304L austenitic stainless steel.
Spirax Sarco 0176090, AE50S Automatic Air and Gas Vent, 3/4 x 1/2 in, FNPT Connection, 600 psig, 800 deg F, Stainless Steel
CBPN: 65584
MPN:0176090
Price:
$1276.73 / EA
DESCRIPTION
Spirax Sarco Air and Gas Vent, Automatic, 3/4 x 1/2 in, FNPT x FNPT, 600 psig, 800 deg F, Stainless Steel
The AE50S automatic air and gas vent is designed for use on liquid systems. It has a welded construction and the body is manufactured in 304L austenitic stainless steel.
Specifications
Brand: Spirax Sarco
Weight: 2.3 lbs
Size: 3/4 x 1/2 in
Connection Type: FNPT
Pressure Rating: 600 psig
Temperature Rating: 800 deg F
Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Series: AE50S
Type: Automatic
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: European Pressure Equipment Directive 97/23/EC
Item Features
- For liquid systems
- ANSI 300 body design conditions
- Maximum allowable pressure: 600 psig at 86 deg F
- Maximum operating temperature: 800 deg F at 342 psig
- 600 psig at 86 deg F maximum operating pressure
- Minimum operating temperature: -40 deg F
- Maximum differential pressure: 435 pisg
- Designed for a maximum cold hydraulic test pressure of 914 psig
- 0.65 minimum specific gravity of liquid
- The AE50S should be installed vertically with the inlet at the bottom
- 6.9 in H
