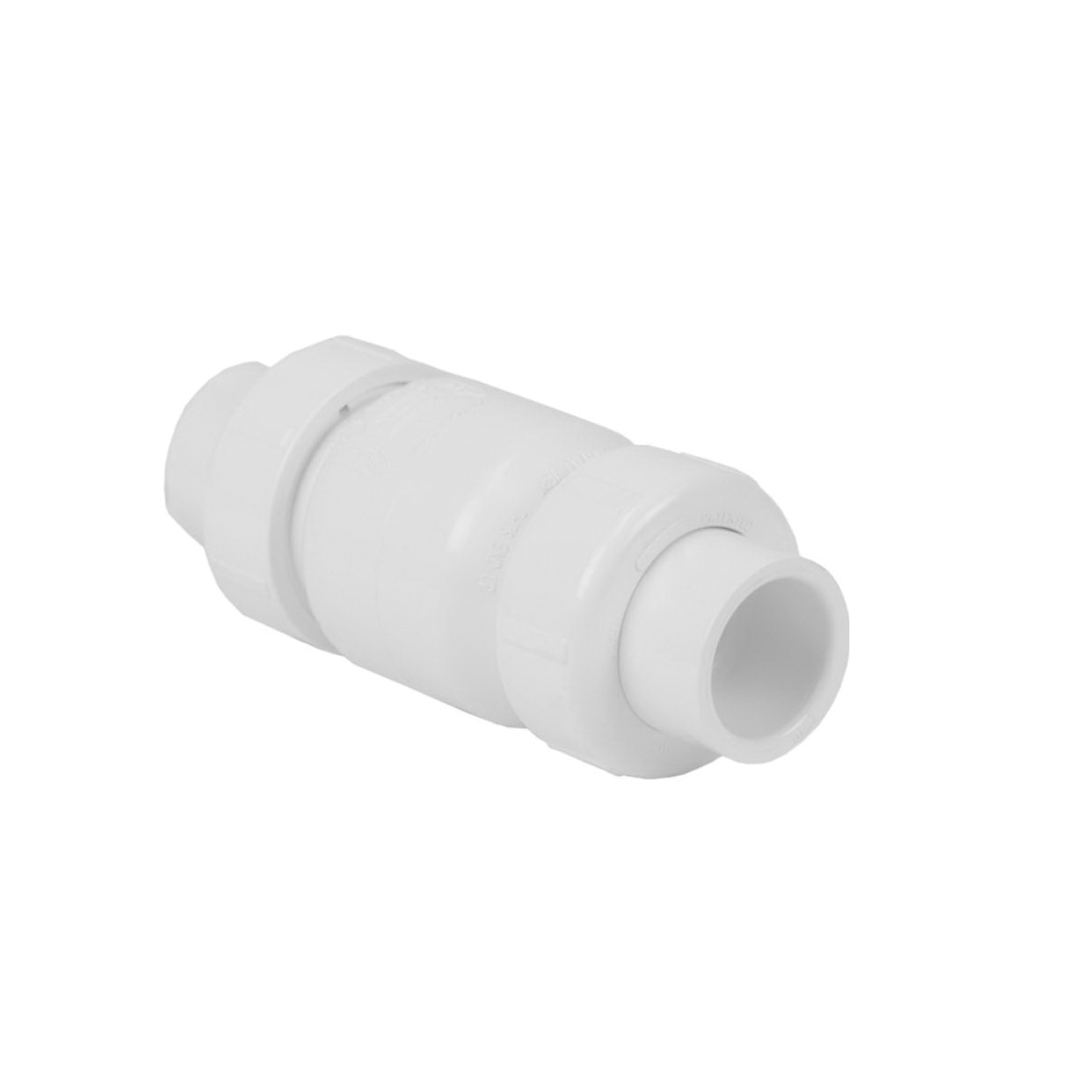

Spears® S1720-15 True Union Utility Swing Check Valve, 1-1/2 in Nominal, Socket End Style, PVC Body, Domestic
CBPN:155780
UPC:054211988763
MPN:S1720-15
Price:
$38.89 / EA
DESCRIPTION
Spears® Utility Swing Check Valve, Series: True Union, 1-1/2 in Nominal, Socket End Style, 150/75 psi Pressure, 140 deg F, No Low Lead Compliance, Media: Water, 7-3/8 in Inlet to Outlet Length, PVC Body, EPDM Trim, White, 3-3/8 in H Dimensions, Domestic/Import: Domestic
Spears® True Union Utility Swing Check and spring assisted True Union Utility Spring Check Valves offer a compact, high performance check valve for Landscape and Irrigation, Pool and Spa, Aquaculture, OEM 1 and many general purpose applications. True Union design allows for easy in-line replacement of maintenance free sealed units. These valves feature long-life EPDM elastomer seats with weighted disc for full-flow with minimal restriction and positive shutoff. Spring assisted "Spring Check" model incorporates a positive-pressure spring to assist in valve closing without slamming. Produced from PVC White or PVC Clear material with Socket, Threaded or SR Threaded end connectors in IPS Sizes 1/2 in through 4 in.
Spears® S1720-15 True Union Utility Swing Check Valve, 1-1/2 in Nominal, Socket End Style, PVC Body, Domestic
CBPN:155780
MPN:S1720-15
UPC:054211988763
Price:
$38.89 / EA
DESCRIPTION
Spears® Utility Swing Check Valve, Series: True Union, 1-1/2 in Nominal, Socket End Style, 150/75 psi Pressure, 140 deg F, No Low Lead Compliance, Media: Water, 7-3/8 in Inlet to Outlet Length, PVC Body, EPDM Trim, White, 3-3/8 in H Dimensions, Domestic/Import: Domestic
Spears® True Union Utility Swing Check and spring assisted True Union Utility Spring Check Valves offer a compact, high performance check valve for Landscape and Irrigation, Pool and Spa, Aquaculture, OEM 1 and many general purpose applications. True Union design allows for easy in-line replacement of maintenance free sealed units. These valves feature long-life EPDM elastomer seats with weighted disc for full-flow with minimal restriction and positive shutoff. Spring assisted "Spring Check" model incorporates a positive-pressure spring to assist in valve closing without slamming. Produced from PVC White or PVC Clear material with Socket, Threaded or SR Threaded end connectors in IPS Sizes 1/2 in through 4 in.
Specifications
Brand: Spears®
Weight: 1.38lbs
Body Material: PVC
End Style: Socket
Nominal Size: 1-1/2 in
Series: True Union
Temperature Rating: 140 deg F
Color: White
Pressure Rating: 150/75 psi
Dimensions: 3-3/8 in H
Media: Water
Low Lead Compliance: No
Trim Material: EPDM
Inlet to Outlet Length: 7-3/8 in
Manufacturer Name: Spears Manufacturing
Application: Landscape and Irrigation, Pool and Spa, Aquaculture, OEM and Many General Purpose
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784 Cell Classification 12454 | NSF Approved
Item Features
- Chemical and corrosion resistant PVC white or high visibility PVC clear construction
- No metal parts on swing check - stainless steel spring on spring check
- True union style for easy in-line replacement of sealed unit
- Strong buttress threaded union nuts
- Engineered for maximum flow, quick response and positive shut-off
- Long life high grade EPDM seat with weighted disc
- Suitable for either horizontal or vertical installations and vacuum service
- Silicone free assembly
- 150 psi at 73 deg F full flow (open), 75 psi back pressure (Closed)
- EPDM seat
