Spears PVC Ball Valve

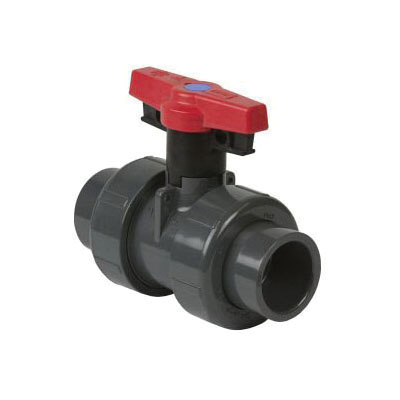

Spears® 1829-020 True Union 2000 Industrial Ball Valve, 2 in Nominal, Socket and FNPT End Style, PVC Body, EPDM Softgoods, Domestic

CBPN:419

UPC:054211942925

MPN:1829-020

Price:
$214.59 / EA

DESCRIPTION

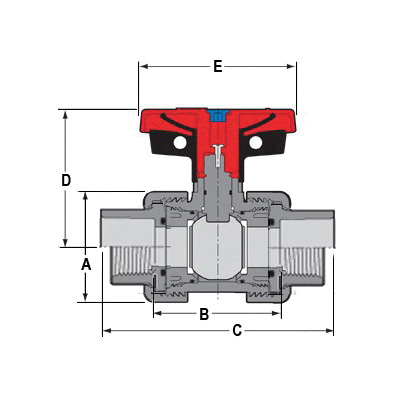

Spears® Ball Valve, Industrial, Series: True Union 2000, 2 in Nominal, Socket and FNPT, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 7-3/4 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic

The Spears® True Union 2000 Ball Valves, 3-Way Ball Valves, and Ball Check Valves are designed for maximum versatility, featuring fully interchangeable valve cartridges. This design facilitates easy system modifications and upgrades in projects requiring different valve types. Users can effortlessly replace any True Union 2000 valve in-line using existing union nuts and can also integrate them with new Spears SCH 80/XH Unions and Diaphragm Valves. These valves boast a low profile and compact design, minimizing space requirements. They are offered in PVC or CPVC options, with a choice of EPDM or FKM O-ring seals, and various end connections such as socket, threaded, flanged, spigot, or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears provides valve Retrofit Kits for straightforward in-line replacement of other valves and offers factory-installed Actuation Packages. All valves are assembled with silicone-free lubricant for reliable performance.

Spears® 1829-020 True Union 2000 Industrial Ball Valve, 2 in Nominal, Socket and FNPT End Style, PVC Body, EPDM Softgoods, Domestic

CBPN:419

MPN:1829-020

UPC:054211942925

Price:
$214.59 / EA

Spears logo

DESCRIPTION

Spears® Ball Valve, Industrial, Series: True Union 2000, 2 in Nominal, Socket and FNPT, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 7-3/4 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic

The Spears® True Union 2000 Ball Valves, 3-Way Ball Valves, and Ball Check Valves are designed for maximum versatility, featuring fully interchangeable valve cartridges. This design facilitates easy system modifications and upgrades in projects requiring different valve types. Users can effortlessly replace any True Union 2000 valve in-line using existing union nuts and can also integrate them with new Spears SCH 80/XH Unions and Diaphragm Valves. These valves boast a low profile and compact design, minimizing space requirements. They are offered in PVC or CPVC options, with a choice of EPDM or FKM O-ring seals, and various end connections such as socket, threaded, flanged, spigot, or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears provides valve Retrofit Kits for straightforward in-line replacement of other valves and offers factory-installed Actuation Packages. All valves are assembled with silicone-free lubricant for reliable performance.

Specifications

Brand: Spears®
Weight: 3.27lbs
Actuator Type: T-Handle
Body Material: PVC
End Style: Socket and FNPT
Nominal Size: 2 in
Series: True Union 2000
Temperature Rating: 140 deg F
Type: Industrial
Color: Gray
Pressure Rating: 235 psi
Softgoods Material: EPDM
Trim Material: PVC Stem and PTFE Seat
Ball Material: PVC
Inlet to Outlet Length: 7-3/4 in
Manufacturer Name: Spears Manufacturing
Top to Inlet Center: 4-1/2 in
Domestic/Import: Domestic
Country of Origin: US

Item Features

  • Chemical and corrosion resistant PVC or CPVC construction
  • Strong, buttress thread union nuts
  • Spears® Safe-T-Blocked® seal carrier
  • Assembled with silicone-free, water soluble lubricant
  • Suitable for either horizontal or vertical installations and vacuum service
  • EPDM O-ring
