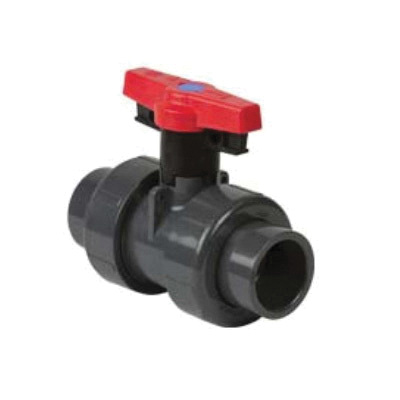

Spears® 1822-012C True Union 2000 Ball Valve With Handle, 1-1/4 in, Socket End Style, CPVC Body, EPDM Softgoods, Domestic
CBPN: 275770
UPC:054211847091
MPN:1822-012C
DESCRIPTION
Spears® Ball Valve, Series: True Union 2000, 1-1/4 in Nominal, Socket, 235 psi, 200 deg F, CPVC Ball, CPVC Body, CPVC Stem and PTFE Seat Trim, EPDM Softgoods, Gray, 4-5/8 in H, Domestic
This multi-featured, space saving quarter-turn shut-off valve is designed to meet the demands of today's industrial and chemical processing applications. PVC and CPVC valves are available in IPS sizes 1/2 through 6 in with socket/regular thread, SR (Special Reinforced) thread, flanged or spigot end connectors and 8 in Venturied valve with socket or flanged ends. Also available in metric socket and BSP thread sizes 1/2 through 2 in.
Spears® 1822-012C True Union 2000 Ball Valve With Handle, 1-1/4 in, Socket End Style, CPVC Body, EPDM Softgoods, Domestic
CBPN: 275770
MPN:1822-012C
UPC:054211847091
DESCRIPTION
Spears® Ball Valve, Series: True Union 2000, 1-1/4 in Nominal, Socket, 235 psi, 200 deg F, CPVC Ball, CPVC Body, CPVC Stem and PTFE Seat Trim, EPDM Softgoods, Gray, 4-5/8 in H, Domestic
This multi-featured, space saving quarter-turn shut-off valve is designed to meet the demands of today's industrial and chemical processing applications. PVC and CPVC valves are available in IPS sizes 1/2 through 6 in with socket/regular thread, SR (Special Reinforced) thread, flanged or spigot end connectors and 8 in Venturied valve with socket or flanged ends. Also available in metric socket and BSP thread sizes 1/2 through 2 in.
Specifications
Item Features
- Chemical and corrosion resistant CPVC construction
- High impact polypropylene handle
- Built-in handle lockout
- SCH 80/XH full bore design
- Strong, buttress thread union nuts
- Spears® double O-Ring Safe-T-Shear® stem design
- Spears® Safe-T-Blocked® seal carrier
- Self adjusting PTFE floating seat design
- Fully serviceable, replaceable components
- Suitable for vacuum service
- Assembled with silicone-free, water soluble lubricant
- EPDM O-ring
