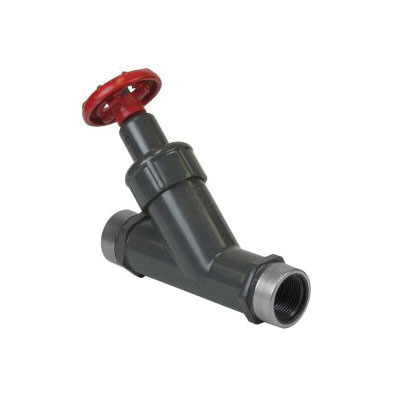

Spears® 1721-020CSR Y-Pattern Valve, 2 in Nominal, Special Reinforced FNPT End Style, CPVC Body, Handwheel Actuator, Domestic
CBPN:237563
UPC:054211311196
MPN:1721-020CSR
Price:
$667.31 / EA
DESCRIPTION
Spears® Y-Pattern Valve, 2 in Nominal, Special Reinforced FNPT End Style, 150 psi Pressure, 200 deg F, Handwheel Actuator, 10-1/8 in Inlet to Outlet Length, 8-1/2 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring Softgoods, 3-1/2 in Diameter Hand Wheel, Gray, Domestic
The Y-Pattern valve is a closing-down, globe type valve design that provides proportional opening to seating disc travel. As such, Y-Pattern valves are ideally suited for flow regulating applications. The Y-pattern configuration reduces pressure loss over that of standard globe valves. Available in IPS Sizes 1/2 - 4 in with socket, SR threaded, flanged, socket union or SR threaded union end connectors.
Spears® 1721-020CSR Y-Pattern Valve, 2 in Nominal, Special Reinforced FNPT End Style, CPVC Body, Handwheel Actuator, Domestic
CBPN:237563
MPN:1721-020CSR
UPC:054211311196
Price:
$667.31 / EA
DESCRIPTION
Spears® Y-Pattern Valve, 2 in Nominal, Special Reinforced FNPT End Style, 150 psi Pressure, 200 deg F, Handwheel Actuator, 10-1/8 in Inlet to Outlet Length, 8-1/2 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring Softgoods, 3-1/2 in Diameter Hand Wheel, Gray, Domestic
The Y-Pattern valve is a closing-down, globe type valve design that provides proportional opening to seating disc travel. As such, Y-Pattern valves are ideally suited for flow regulating applications. The Y-pattern configuration reduces pressure loss over that of standard globe valves. Available in IPS Sizes 1/2 - 4 in with socket, SR threaded, flanged, socket union or SR threaded union end connectors.
Specifications
Brand: Spears®
Weight: 4.31lbs
Actuator Type: Handwheel
Body Material: CPVC
End Style: Special Reinforced FNPT
Nominal Size: 2 in
Temperature Rating: 200 deg F
Color: Gray
Pressure Rating: 150 psi
Softgoods Material: EPDM/FKM O-Ring
Trim Material: CPVC
Hand Wheel Diameter: 3-1/2 in
Inlet to Outlet Length: 10-1/8 in
Manufacturer Name: Spears Manufacturing
Top to Inlet Center: 8-1/2 in
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784
Item Features
- Chemical and corrosion resistant PVC gray, PVC clear or CPVC construction
- Buttress thread bonnet
- Fully serviceable, replaceable components
- Standard o-ring seal seating disc and seals
- High impact polypropylene handle
- Assembled with silicone free, water soluble lubricant
- http://youtu.be/9hzQlUWbLSE
