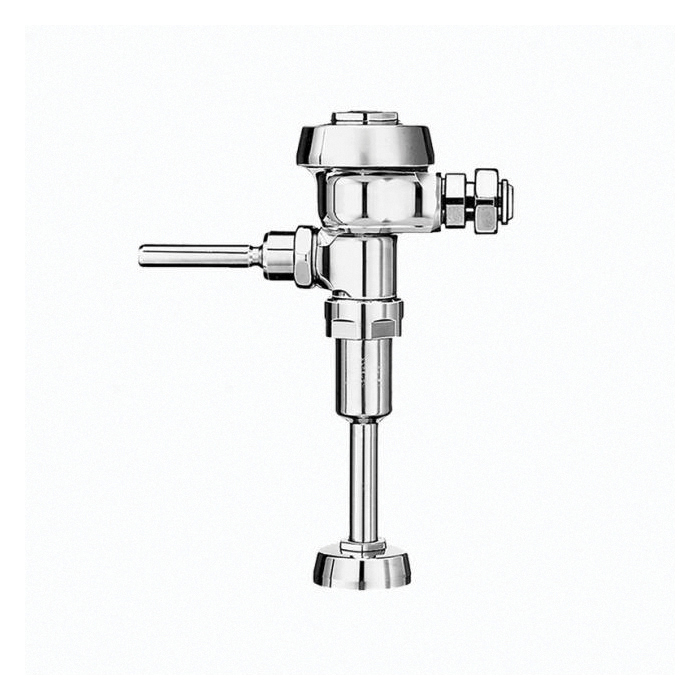

Sloan® Royal® 3912504 188-1.5-XD Single-Flush Manual Exposed Flushometer, 1.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 222623
UPC:671254144118
MPN:3912504
Price:
$207.03 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 188-1.5-XD, Urinal Fixture, 1.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Exposed urinal flushometer with adjustable tailpiece for Cambridge brass teck supply stop, for 3/4 in top spud urinals.
Sloan® Royal® 3912504 188-1.5-XD Single-Flush Manual Exposed Flushometer, 1.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 222623
MPN:3912504
UPC:671254144118
Price:
$207.03 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 188-1.5-XD, Urinal Fixture, 1.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Exposed urinal flushometer with adjustable tailpiece for Cambridge brass teck supply stop, for 3/4 in top spud urinals.
Specifications
Brand: Sloan®
Weight: 5.567 lbs
Flush Rate: 1.5 gpf
Inlet Size: 3/4 in IPS
Spud Coupling: 3/4 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Urinal
Handle Type: Non-Hold Open Oscillating
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Series: 188, 188-1.5-XD
Type: Single-Flush
Valve Design: Diaphragm
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | BAA Compliant | cUPC Listed
Item Features
- Various water-saving flush volumes for urinals and water closets
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents fixture from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Vandal-resistant stop cap prevents tampering
- PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
