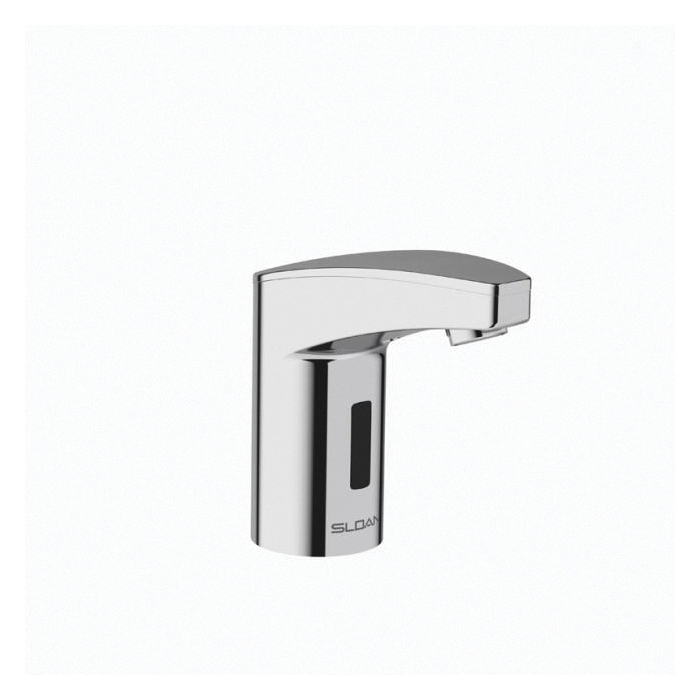

Sloan® Optima Plus® 3335107 EAF-350 Hand Washing Faucet, Commercial, 1.5 gpm Flow Rate, 4-3/64 in H Spout, Polished Chrome, Function: Touchless
CBPN: 199679
UPC:671254420892
MPN:3335107
Price:
$697.92 / EA
DESCRIPTION
Sloan® Optima Plus® Hand Washing Faucet, Series: EAF-350, 1.5 gpm Flow Rate, Mid Spout, 4-3/64 in Spout Reach, 4-3/64 in Spout Height, 13 in Hose, Function: Touchless, 1-49/64 in Maximum Deck Thickness, Deck Mounting, Bi-Stable Magnetic Solenoid Valve, Die Cast Metal, Polished Chrome, Import, Commercial Commercial/Residential
Battery Powered, Sensor Activated, Electronic Hand Washing Faucet for pre-tempered or hot and cold water operation.
Sloan® Optima Plus® 3335107 EAF-350 Hand Washing Faucet, Commercial, 1.5 gpm Flow Rate, 4-3/64 in H Spout, Polished Chrome, Function: Touchless
CBPN: 199679
MPN:3335107
UPC:671254420892
Price:
$697.92 / EA
DESCRIPTION
Sloan® Optima Plus® Hand Washing Faucet, Series: EAF-350, 1.5 gpm Flow Rate, Mid Spout, 4-3/64 in Spout Reach, 4-3/64 in Spout Height, 13 in Hose, Function: Touchless, 1-49/64 in Maximum Deck Thickness, Deck Mounting, Bi-Stable Magnetic Solenoid Valve, Die Cast Metal, Polished Chrome, Import, Commercial Commercial/Residential
Battery Powered, Sensor Activated, Electronic Hand Washing Faucet for pre-tempered or hot and cold water operation.
Specifications
Brand: Sloan®
Weight: 3 lbs
Collection: Optima®
Type: Sensor Activated Touchless
Commercial/Residential: Commercial
Flow Rate: 1.5 gpm
Spout Height: 4-3/64 in
Center Distance: N/A
Finish/Color: Polished Chrome
Function: Touchless
Hose Size: 13 in
Manufacturer Name: Sloan Valve Company
Material: Die Cast Metal
Maximum Deck Thickness: 1-49/64 in
Mounting Type: Deck
Power Source: Battery
Sensor Range: 2-1/2 to 7-1/2 in
Series: EAF-350
Spout Reach: 4-3/64 in
Spout Type: Mid
Spray Pattern: Aerated
Valve Type: Integral Spout Mixer
Valve/Cartridge Type: Bi-Stable Magnetic Solenoid Valve
Voltage Rating: 6 VDC
Includes: Appropriate Mounting Hardware
Warranty: 3 Years Limited
Domestic/Import: Import
Country of Origin: CH
Standards and Approvals: ADA Compliant | ASME A112.18.1 | cUPC Certified | NSF Approved | IPC Listed | NPC Canada
Item Features
- Water supply connection with flexible high-pressure hose and strainer
- Modular one-piece construction with all serviceable components above deck
- Temperature adjustable with mixer
- Double infrared sensors with automatic setting feature and microprocessor
- Adjustable hot water limit set (with ISM mixer)
- IR switch for manual rinse activation
- Control circuit 6 VDC - includes auto set range adjustment and low battery indicator LED
- Approximate 3 year battery life
- Time out setting maximum time faucet will run upon continuous moving detection 0.5 gpm to 15 sec, 1.5 gpm to 7 sec
- Above deck control access
- ISM: Integrated side mounted mechanical mixing valve
- Electronic metering
- Single centerset
