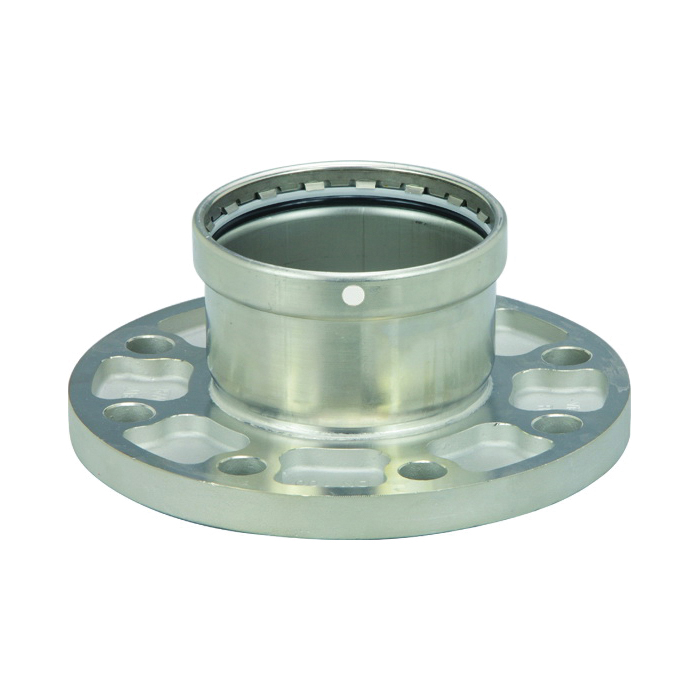

ProPress® XL 86077 Model 6059XL, Adapter Flange, 4 in, Press x Bolt Pattern, 304 Stainless Steel, FKM Seal, Import
CBPN: 176017
UPC:691514860770
MPN:86077
ProPress® XL 86077 has been discontinued by the manufacturer.
DESCRIPTION
ProPress® XL Adapter Flange, Fitting/Connector Type: Flange, Series: Model 6059XL, 4 in Nominal, Press x Bolt Pattern, 200 psi, 0 To 284 deg F, 304 Stainless Steel, FKM Seal, Import
Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
ProPress® XL 86077 Model 6059XL, Adapter Flange, 4 in, Press x Bolt Pattern, 304 Stainless Steel, FKM Seal, Import
CBPN: 176017
MPN:86077
UPC:691514860770
ProPress® XL 86077 has been discontinued by the manufacturer.
DESCRIPTION
ProPress® XL Adapter Flange, Fitting/Connector Type: Flange, Series: Model 6059XL, 4 in Nominal, Press x Bolt Pattern, 200 psi, 0 To 284 deg F, 304 Stainless Steel, FKM Seal, Import
Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
Specifications
Brand: ProPress® XL
Weight: 11.025 lbs
Fitting/Connector Type: Flange
Nominal Size: 4 in
End Style: Press x Bolt Pattern
Material: 304 Stainless Steel
Seal Material: FKM
Manufacturer Name: Viega
Pressure Rating: 200 psi
Temperature Rating: 0 to 284 deg F
Includes: FKM Sealing Element (White Dot)
Application: Additives, Sludge, Aeration, Lube Oil, Slurry and Compressed Air
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: CSA Certified | FM Approved | NSF 61 | UL Listed
