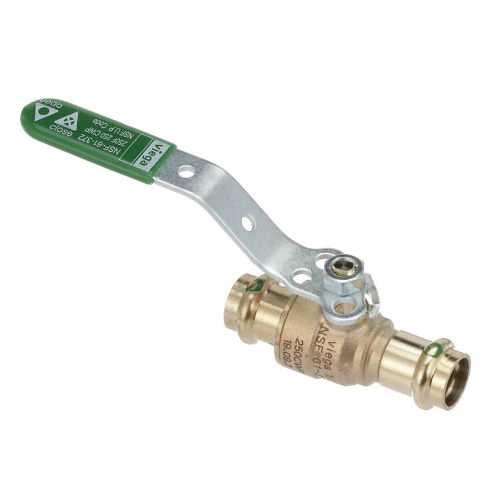

ProPress® 79950 Model 2971.1ZL Ball Valve With Lockable Metal Handle, 2 in, Press End Style, Lead Free Bronze Body, Full Port, EPDM Softgoods, Import
CBPN: 244467
UPC:691514799506
MPN:79950
Price:
$218.33 / EA
Prop 65:
DESCRIPTION
ProPress® Ball Valve, Lead Free, Series: 2971.1ZL, 2", Press, 250 psi CWP, 0 to 250 deg F, Full Port, Media: Water, Locking Handle Actuator, 316 Stainless Steel Ball, 3.32 in Top to Inlet Center, C87700 Bronze Body, C69300 Brass/PTFE Trim, EPDM, Import
The two-piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega Smart Connect® technology for easy identification of unpressed connections during pressure testing.
ProPress® 79950 Model 2971.1ZL Ball Valve With Lockable Metal Handle, 2 in, Press End Style, Lead Free Bronze Body, Full Port, EPDM Softgoods, Import
CBPN: 244467
MPN:79950
UPC:691514799506
Price:
$218.33 / EA
Prop 65:
DESCRIPTION
ProPress® Ball Valve, Lead Free, Series: 2971.1ZL, 2", Press, 250 psi CWP, 0 to 250 deg F, Full Port, Media: Water, Locking Handle Actuator, 316 Stainless Steel Ball, 3.32 in Top to Inlet Center, C87700 Bronze Body, C69300 Brass/PTFE Trim, EPDM, Import
The two-piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega Smart Connect® technology for easy identification of unpressed connections during pressure testing.
Specifications
Brand: ProPress®
Weight: 9.598 lbs
Nominal Size: 2 in
End Style: Press
Pressure Rating: 250 psi CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: EPDM
Actuator Type: Locking Handle
Ball Material: 316 Stainless Steel
Manufacturer Name: Viega
Media: Water
Series: 2971.1ZL
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 3.32 in
Trim Material: C69300 Brass/PTFE
Type: 2-Piece
Includes: EPDM Sealing Element (Green Dot) and Locking Metal Handle
Application: Potable Water Applications
Warranty: 2 Years Limited
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: IAPMO/ANSI Z1157 | MSS SP-110 | NSF 61-372/61-G | UPC Listed | PROP65: This product can expose you to chemicals including Chromium (hexavalent compounds), which is know to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Features
- Multiple system and connection solutions
- 316 stainless steel ball
- Smart Connect® technology
- Installs within minutes - up to 80% faster than conventional methods
- Same tool used for installation of ball valves and fittings
- No flame, fire watch or hot work permits required
- PTFE seat/C69300 brass stem
- EPDM seal
