MegaPress Stainless Pipe Adapter, Press x FNPT

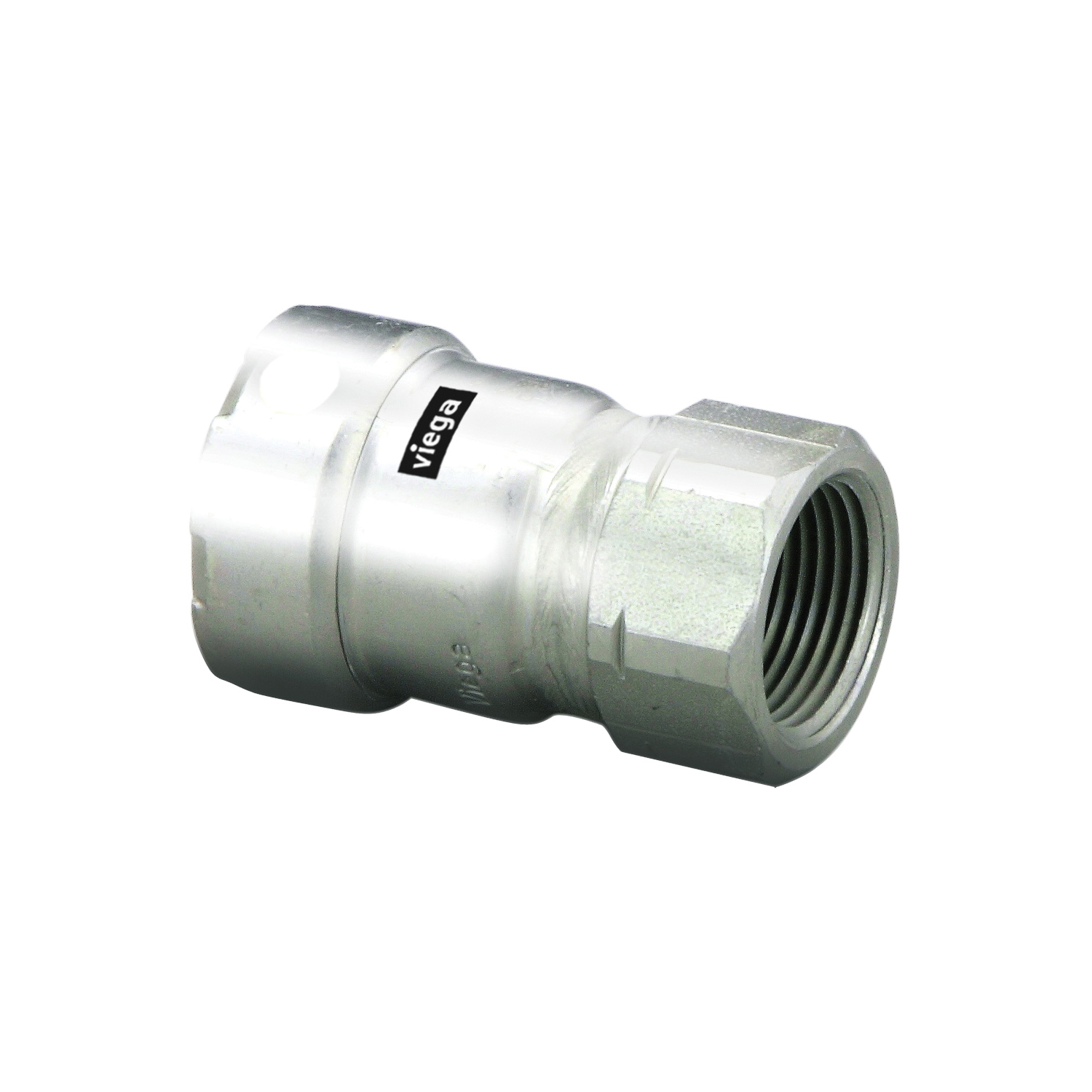

MegaPress® 95270 Model 4112, Adapter, 1 in, Press x FNPT, 304 Stainless Steel, FKM Seal, Import

CBPN:211253

UPC:691514952703

MPN:95270

Price:
$75.65 / EA
Enter in multiples of 5

DESCRIPTION

MegaPress® Adapter, Fitting/Connector Type: Adapter, Series: Model 4112, 1 in Nominal, Press x FNPT, 200 psi, 0 to 250 deg F, 304 Stainless Steel, 2.8 in L, FKM Seal, Import

Viega MegaPress® Stainless 304 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for both commercial and industrial applications. MegaPress® Stainless 304 fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 304 system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases.

MegaPress® 95270 Model 4112, Adapter, 1 in, Press x FNPT, 304 Stainless Steel, FKM Seal, Import

CBPN:211253

MPN:95270

UPC:691514952703

Price:
$75.65 / EA

Enter in multiples of 5
Viega MegaPress

DESCRIPTION

MegaPress® Adapter, Fitting/Connector Type: Adapter, Series: Model 4112, 1 in Nominal, Press x FNPT, 200 psi, 0 to 250 deg F, 304 Stainless Steel, 2.8 in L, FKM Seal, Import

Viega MegaPress® Stainless 304 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for both commercial and industrial applications. MegaPress® Stainless 304 fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 304 system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases.

Specifications

BrandMegaPress®
Weight0.538 lbs
Fitting/Connector TypeAdapter
Nominal Size1 in
End StylePress x FNPT
Material304 Stainless Steel
Seal MaterialFKM
Dimensions2.8 in L
Manufacturer NameViega
Pressure Rating200 psi
Temperature Rating0 to 250 deg F
IncludesFKM Sealing Element (White Dot)
ApplicationCommercial and Industrial
WarrantyLimited
Domestic/ImportImport
Country of OriginDE
Standards and ApprovalsASTM A312 | CRN 13492.5 A/B | IAPMO/UPC PS-117 | ICC LC1002 | TSSA/ASME B31.1/B31.3/B31.9

Item Features

  • Patented Viega Smart Connect® makes secure connection in less than 7 sec
  • Minimizes system downtime by allowing for wet connection
  • Fast and easy to use
  • No welding, grinding or heavy equipment needed
  • Helps installers easily identify unpressed connections during pressure testing
  • Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
  • Wide range of fitting configurations
  • Eliminate threading and welding
  • No fire watches, hot work permits or gas freezing
  • Makes secure press connections from 1/2 to 2 in less than seven seconds
  • Compatible with existing press tools
  • Model 4112
