Marsh J64 Series Liquid Pressure Gauge with Back Mounted Connection

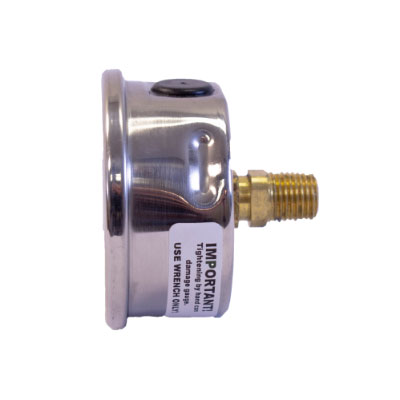

Marsh J6446P Severe Service Liquid Filled Pressure Gauge, 2-1/2" Dial Size, 0 to 60 psi Range, 1/4 in MNPT Back Mount, Stainless Steel Case

CBPN: 74156

MPN:J6446P

Price:
$35.30 / EA

DESCRIPTION

Marsh Severe Service Liquid Filled Pressure Gauge, Series J, 2-1/2" Dial Size, 1/4 in MNPT Back Mount, 0 to 60 psi Range, Stainless Steel Case, Brass Internals, Polycarbonate Lens, Accuracy +/-3/2/3% (ASME Grade B)

Marsh Instruments Severe Service Liquid Filled Gauges are designed to perform in rugged and harsh environmental conditions, especially where pulsation or vibration is a problem. Liquid Filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and lubricating the internals.

Marsh J6446P Severe Service Liquid Filled Pressure Gauge, 2-1/2" Dial Size, 0 to 60 psi Range, 1/4 in MNPT Back Mount, Stainless Steel Case

CBPN: 74156

MPN:J6446P

Price:
$35.30 / EA

Marsh Instruments Gauges Logo

DESCRIPTION

Marsh Severe Service Liquid Filled Pressure Gauge, Series J, 2-1/2" Dial Size, 1/4 in MNPT Back Mount, 0 to 60 psi Range, Stainless Steel Case, Brass Internals, Polycarbonate Lens, Accuracy +/-3/2/3% (ASME Grade B)

Marsh Instruments Severe Service Liquid Filled Gauges are designed to perform in rugged and harsh environmental conditions, especially where pulsation or vibration is a problem. Liquid Filled Gauges offer a significant cushioning and dampening effect, reducing pointer flutter and lubricating the internals.

Specifications

Brand: Marsh
Pressure Range: 0 to 60 psi
Dial Diameter: 2-1/2 in
Connection Size: 1/4 in MNPT
Mounting Type: Back Connection
Accuracy: +/-3/2/3%
Case Material: Stainless Steel
Liquid Filled: Glycerine
Display Type: Dual Scale - psi & kPa
Manufacturer Name: Marsh
Series: J Series Severe Service
Type: Severe Service
Application: For applications in harsh environments, especially where pulsation or vibration is a problem.
Warranty: 1 Year
Standards and Approvals: ASME B40.100 | ASME Grade B

Item Features

  • Liquid filled for dampening effect
  • Weatherproof/hermetically sealed
  • Heavy duty 1 piece socket design
  • Dual scale - psi & kPa
