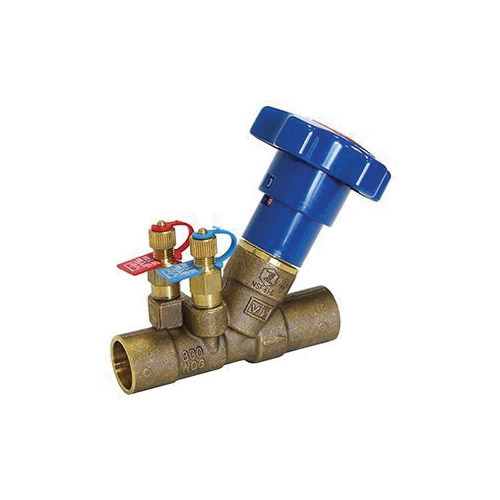

Gruvlok® 0763100948 FIG MBV-9519AB Ultra Low Flow Fixed Orifice Double Regulating Valve, 1/2 in Nominal, Solder End Style, 300 psi Working Pressure, 0.27 to 0.71 gpm Flow Rate, Brass Body, Import
CBPN: 294890
UPC:662428521118
MPN:0763100948
Price:
$135.68 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9519AB, 1/2 in Nominal, Solder Joint End Style, 300 psi Working Pressure, 300 lb WOG Pressure Class, 160 deg F, 0.27 to 0.71 gpm Flow Rate, Handwheel Actuator, Brass Body, Brass Trim, Perox Softgoods, Import
Fixed orifice low lead DZR brass double regulating valve. Intended for HVAC and domestic water use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Gruvlok® 0763100948 FIG MBV-9519AB Ultra Low Flow Fixed Orifice Double Regulating Valve, 1/2 in Nominal, Solder End Style, 300 psi Working Pressure, 0.27 to 0.71 gpm Flow Rate, Brass Body, Import
CBPN: 294890
MPN:0763100948
UPC:662428521118
Price:
$135.68 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9519AB, 1/2 in Nominal, Solder Joint End Style, 300 psi Working Pressure, 300 lb WOG Pressure Class, 160 deg F, 0.27 to 0.71 gpm Flow Rate, Handwheel Actuator, Brass Body, Brass Trim, Perox Softgoods, Import
Fixed orifice low lead DZR brass double regulating valve. Intended for HVAC and domestic water use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Specifications
Brand: Gruvlok®
Weight: 1.16 lbs
Nominal Size: 1/2 in
End Style: Solder
Pressure Class: 300 lb WOG
Flow Rate: 0.27 to 0.71 gpm
Body Material: Brass
Actuator Type: Handwheel
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 300 psi Working
Series: FIG MBV-9519AB
Softgoods Material: EPDM Perox
Temperature Rating: 160 deg F
Trim Material: Brass
Type: Fixed Orifice
Includes: Low Lead DZR Brass Venturi Insert/Balancing Cone/Brass Disc/Disc Stem/Union/Brass Bonnet/Test Point, PTFE Gasket Disc, EPDM Perox Disc O-Ring, EPDM Perox Stem O-Ring, Brass Stem, Spring Steel Stop Ring, Steel Screw, ABS (Blue) Hand Wheel and Zinc Plated Steel Nut
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: ASME B16.22 | ASTM C27453 Venturi Insert/Body/Balancing Cone/Disc/Disc Stem/UnionThreaded Anvilets | ASTM B124 C37700 Stemx | Gasket Disc | Perox Stem O-Ring
Item Features
- Fixed orifice DZR brass double regulating valve. Intended for HVAC use.
