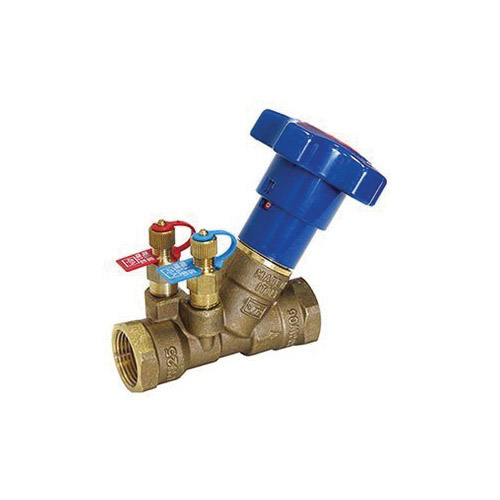

Gruvlok® 0763100302 FIG MBV-T-9517AB Fixed Orifice Double Regulating Valve, 2 in Nominal, FNPT End Style, 300 psi Working Pressure, 24.09 to 55.633 gpm Flow Rate, Brass Body, Import
CBPN: 294874
UPC:662428521729
MPN:0763100302
Price:
$434.03 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG 9517AB, 2 in Nominal, Thread End Style, 300 psi Working Pressure, 300 lb WOG Pressure Class, 160 deg F, 24.09 to 55.633 gpm Flow Rate, Handwheel Actuator, Brass Body, Brass Trim, Perox Softgoods, Import
Fixed orifice low lead DZR brass double regulating valve. Intended for HVAC and domestic water use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Gruvlok® 0763100302 FIG MBV-T-9517AB Fixed Orifice Double Regulating Valve, 2 in Nominal, FNPT End Style, 300 psi Working Pressure, 24.09 to 55.633 gpm Flow Rate, Brass Body, Import
CBPN: 294874
MPN:0763100302
UPC:662428521729
Price:
$434.03 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG 9517AB, 2 in Nominal, Thread End Style, 300 psi Working Pressure, 300 lb WOG Pressure Class, 160 deg F, 24.09 to 55.633 gpm Flow Rate, Handwheel Actuator, Brass Body, Brass Trim, Perox Softgoods, Import
Fixed orifice low lead DZR brass double regulating valve. Intended for HVAC and domestic water use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Specifications
Brand: Gruvlok®
Weight: 4.8 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Class: 300 lb WOG
Flow Rate: 24.09 to 55.633 gpm
Body Material: Brass
Actuator Type: Handwheel
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 300 psi Working
Series: FIG 9517AB
Softgoods Material: EPDM Perox
Temperature Rating: 160 deg F
Trim Material: Brass
Type: Fixed Orifice
Includes: Low Lead DZR Brass Venturi Insert/Balancing Cone/Disc Stem/Union/Stop Spring Ring/Bonnet, PTFE Gasket Disc, EPDM Perox Disc O-Ring/Stem O-Ring, Brass Stem, Steel Spring, Steel Screw, ABS (Blue) Hand Wheel, Zinc Plated Steel Nut and DZR Brass Test Point
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: ASTM C27453 Venturi Insert/Balancing Cone | ASTM C27453 Disc/Stem/Union/Bonnet | ASTM B124 C37700 Stem | ASTM C35330 Test Point
Item Features
- Fixed orifice DZR brass double regulating valve. Intended for HVAC use.
