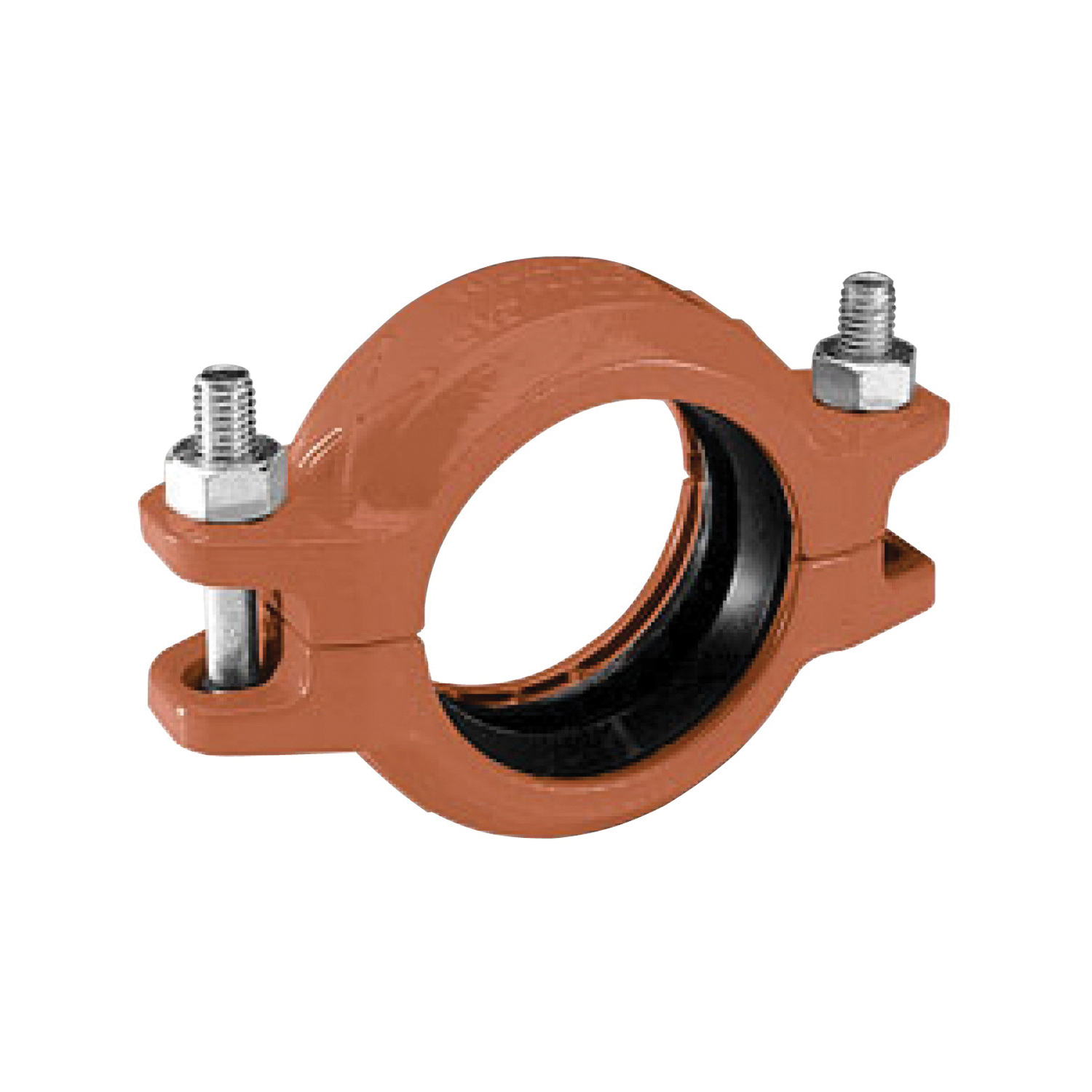

Gruvlok® Rigidlite® 0390211183 FIG 7400 Coupling With EPDM Gasket, 5 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN: 82533
UPC:690291325533
MPN:0390211183
DESCRIPTION
Gruvlok® Pipe Coupling, Series: FIG 7400, Fitting/Connector Type: Coupling, 5 in Nominal, Grooved, 2 in Thickness, 300 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 250 deg F, 5.563 in OD x 9.25 in W, Domestic
The Fig. 7400 Rigidlite Coupling from Gruvlok is specially designed to provide a rigid, locked-in pipe connection to meet the specific demands of rigid design steel pipe systems. Fast and easy swing-over installation of the rugged lightweight housing produces a secure, rigid pipe joint. The Fig. 7400 Rigidlite Coupling is UL/ULC Listed and FM Approved for 300 psi (20.7 bar) with roll grooved or cut grooved steel pipe prepared in accordance with Gruvlok grooving specifications. The galvanized Fig. 7400 is ideal for stainless steel piping application where the external corrosion properties of stainless steel is not required. For Gruvlok coupling pressure ratings on stainless steel pipe, please refer to the Gruvlok Catalog.
Gruvlok® Rigidlite® 0390211183 FIG 7400 Coupling With EPDM Gasket, 5 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN: 82533
MPN:0390211183
UPC:690291325533
DESCRIPTION
Gruvlok® Pipe Coupling, Series: FIG 7400, Fitting/Connector Type: Coupling, 5 in Nominal, Grooved, 2 in Thickness, 300 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 250 deg F, 5.563 in OD x 9.25 in W, Domestic
The Fig. 7400 Rigidlite Coupling from Gruvlok is specially designed to provide a rigid, locked-in pipe connection to meet the specific demands of rigid design steel pipe systems. Fast and easy swing-over installation of the rugged lightweight housing produces a secure, rigid pipe joint. The Fig. 7400 Rigidlite Coupling is UL/ULC Listed and FM Approved for 300 psi (20.7 bar) with roll grooved or cut grooved steel pipe prepared in accordance with Gruvlok grooving specifications. The galvanized Fig. 7400 is ideal for stainless steel piping application where the external corrosion properties of stainless steel is not required. For Gruvlok coupling pressure ratings on stainless steel pipe, please refer to the Gruvlok Catalog.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- 7292 lb max end load
