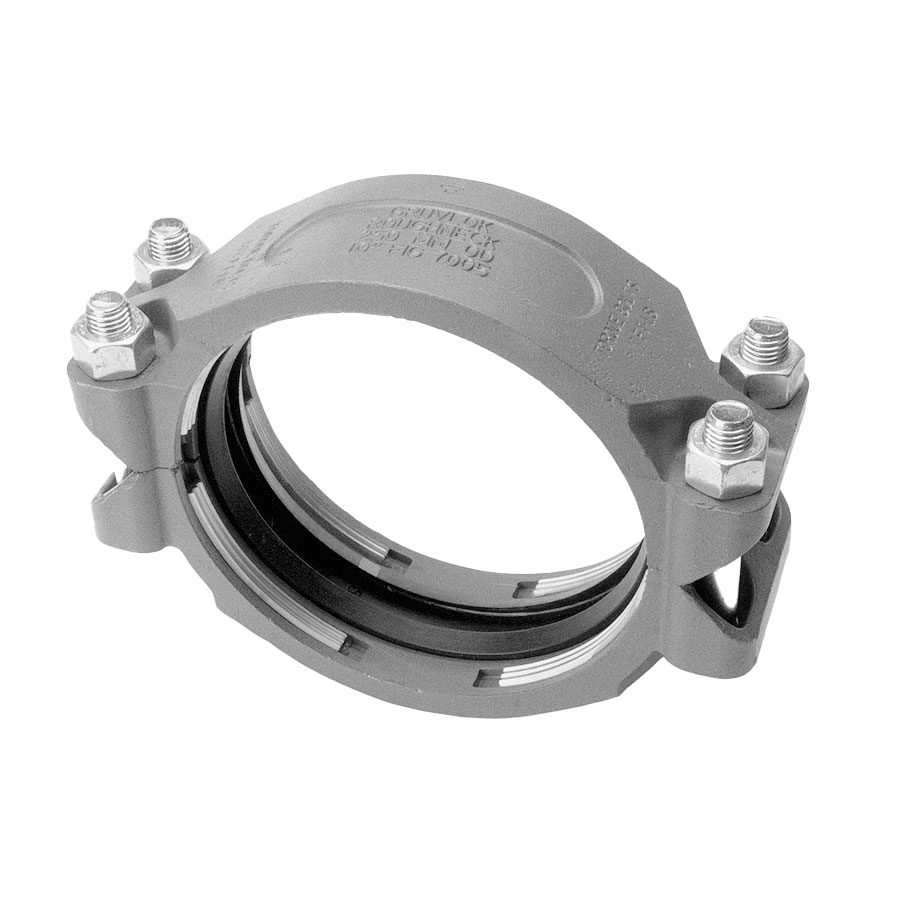

Gruvlok® Roughneck® 0390100543 FIG 7005 Coupling With Nitrile Gasket, 14 in Nominal, Plain End Style, Ductile Iron, Galvanized, Import
CBPN: 293665
UPC:690291836152
MPN:0390100543
DESCRIPTION
Gruvlok® Coupling, Series: FIG 7005, Fitting/Connector Type: Coupling, 14 in Nominal, Plain, 22-1/8 in Length, 200 psi, Galvanized, -20 to 180 deg F, 14 in OD x 6-1/4 in D, Import
The FIG 7005 Roughneck® Coupling is an effective and reliable way of joining plain-end or beveled end pipe. The Roughneck® Coupling is ideal for use in a variety of applications including mining, process piping, manifold piping and oilfield services. The unique gripper action provides a positive pipe joint and allows for working pressure ratings up to 750 psi (52 bars) for SCH 40/STD pipe.
Gruvlok® Roughneck® 0390100543 FIG 7005 Coupling With Nitrile Gasket, 14 in Nominal, Plain End Style, Ductile Iron, Galvanized, Import
CBPN: 293665
MPN:0390100543
UPC:690291836152
DESCRIPTION
Gruvlok® Coupling, Series: FIG 7005, Fitting/Connector Type: Coupling, 14 in Nominal, Plain, 22-1/8 in Length, 200 psi, Galvanized, -20 to 180 deg F, 14 in OD x 6-1/4 in D, Import
The FIG 7005 Roughneck® Coupling is an effective and reliable way of joining plain-end or beveled end pipe. The Roughneck® Coupling is ideal for use in a variety of applications including mining, process piping, manifold piping and oilfield services. The unique gripper action provides a positive pipe joint and allows for working pressure ratings up to 750 psi (52 bars) for SCH 40/STD pipe.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- Recommended for petroleum applications, air with oil vapors and vegetable and mineral oils
- Not for use in hot water or hot air
