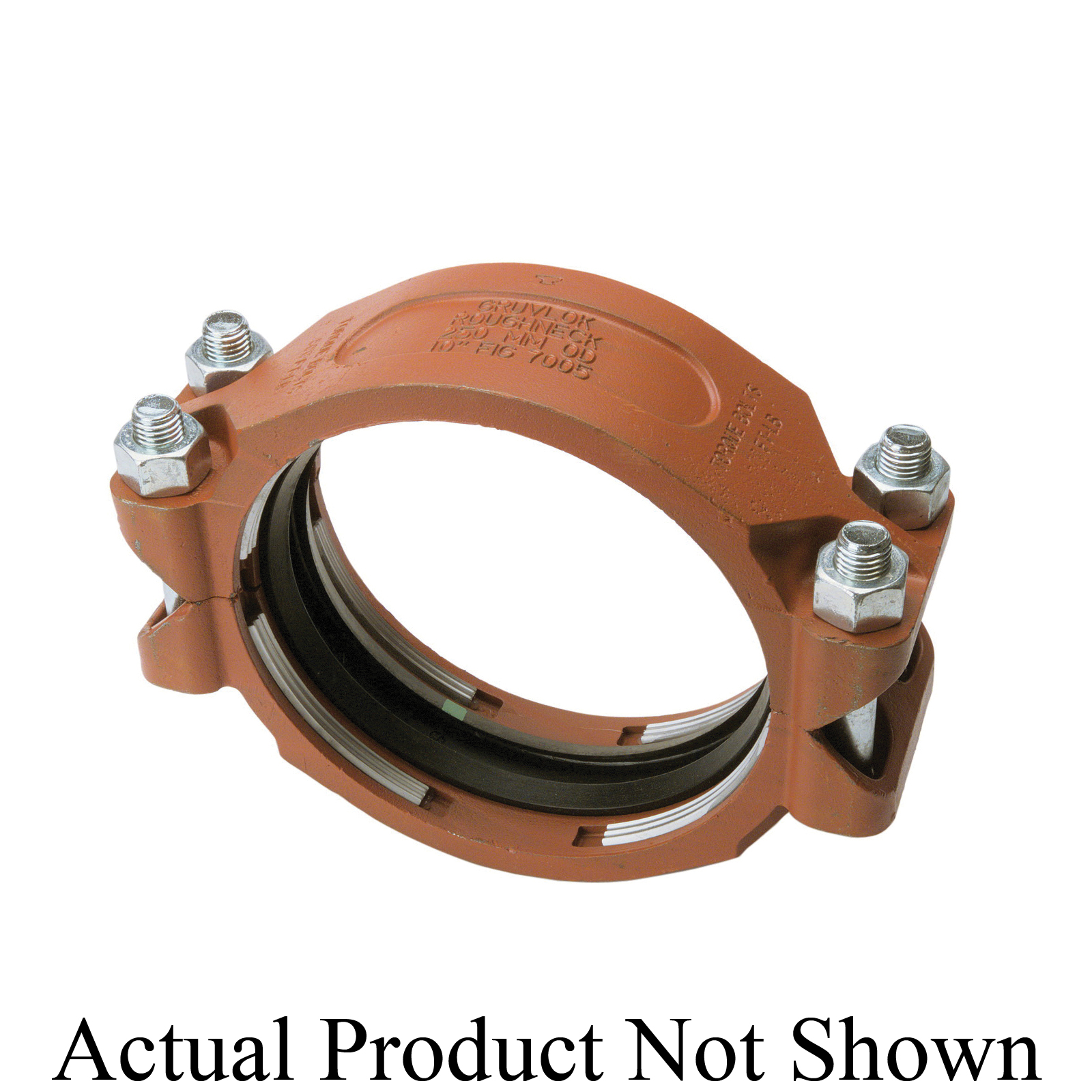

Gruvlok® Roughneck® 0390100196 FIG 7005 Coupling With EPDM Gasket, 8 in Nominal, Plain End Style, Ductile Iron, Galvanized, Domestic
CBPN: 117982
UPC:690291329739
MPN:0390100196
DESCRIPTION
Gruvlok® Coupling, Series: FIG 7005, Fitting/Connector Type: Coupling, 8 in Nominal, Plain, 14-1/2 in Length, 300 psi, Galvanized, -40 to 230 deg F, 8-5/8 in OD x 4-1/2 in D, Domestic
The FIG 7005 Roughneck® Coupling is an effective and reliable way of joining plain-end or beveled end pipe. The Roughneck® Coupling is ideal for use in a variety of applications including mining, process piping, manifold piping and oilfield services. The unique gripper action provides a positive pipe joint and allows for working pressure ratings up to 750 psi (52 bars) for SCH 40/STD pipe.
Gruvlok® Roughneck® 0390100196 FIG 7005 Coupling With EPDM Gasket, 8 in Nominal, Plain End Style, Ductile Iron, Galvanized, Domestic
CBPN: 117982
MPN:0390100196
UPC:690291329739
DESCRIPTION
Gruvlok® Coupling, Series: FIG 7005, Fitting/Connector Type: Coupling, 8 in Nominal, Plain, 14-1/2 in Length, 300 psi, Galvanized, -40 to 230 deg F, 8-5/8 in OD x 4-1/2 in D, Domestic
The FIG 7005 Roughneck® Coupling is an effective and reliable way of joining plain-end or beveled end pipe. The Roughneck® Coupling is ideal for use in a variety of applications including mining, process piping, manifold piping and oilfield services. The unique gripper action provides a positive pipe joint and allows for working pressure ratings up to 750 psi (52 bars) for SCH 40/STD pipe.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- Recommended for water service, diluted acids, alkalies solutions, oil-free air and many chemical services
- Not for use in petroleum application
