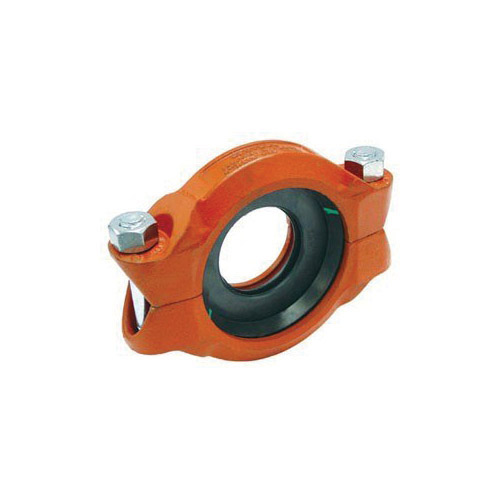

Gruvlok® 0390008894 FIG 7010 Reducing Coupling With Nitrile Gasket, 4 x 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN:291777
UPC:690291463402
MPN:0390008894
DESCRIPTION
Gruvlok® Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 4 x 2-1/2 in Nominal, Grooved End Style, 8-7/8 in Length, 500 psi Pressure, Rust Inhibiting Painted, Orange, -20 to 180 deg F, 4-1/2 in OD x 2 in D Dimensions, Domestic
The FIG 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. FIG 7010 Reducing Coupling allows for working pressure ratings up to 500 psi (34.5 bars). Not recommended for vacuum applications.
Gruvlok® 0390008894 FIG 7010 Reducing Coupling With Nitrile Gasket, 4 x 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN:291777
MPN:0390008894
UPC:690291463402
DESCRIPTION
Gruvlok® Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 4 x 2-1/2 in Nominal, Grooved End Style, 8-7/8 in Length, 500 psi Pressure, Rust Inhibiting Painted, Orange, -20 to 180 deg F, 4-1/2 in OD x 2 in D Dimensions, Domestic
The FIG 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. FIG 7010 Reducing Coupling allows for working pressure ratings up to 500 psi (34.5 bars). Not recommended for vacuum applications.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- Recommended for petroleum applications, air with oil vapors and vegetable and mineral oils
- Not for use in hot water or hot air
