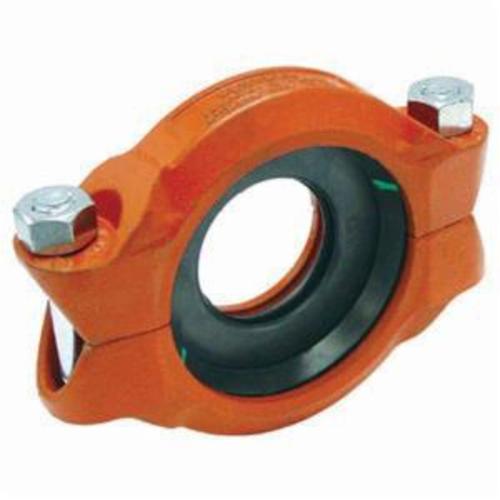

Gruvlok® 0390008829 FIG 7010 Reducing Coupling With Nitrile Gasket, 3 x 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN: 197216
UPC:690291105579
MPN:0390008829
DESCRIPTION
Gruvlok® Pipe Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 3 x 2-1/2 in Nominal, Grooved End Style, 1-7/8 in Thickness, 500 psi Pressure, Ductile Iron, Painted, 2-7/8 to 3-1/2 in OD Dimensions, Domestic
The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.
Gruvlok® 0390008829 FIG 7010 Reducing Coupling With Nitrile Gasket, 3 x 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN: 197216
MPN:0390008829
UPC:690291105579
DESCRIPTION
Gruvlok® Pipe Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 3 x 2-1/2 in Nominal, Grooved End Style, 1-7/8 in Thickness, 500 psi Pressure, Ductile Iron, Painted, 2-7/8 to 3-1/2 in OD Dimensions, Domestic
The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- (2) 1/2 x 2-3/4 in coupling bolts
- 80 to 100 ft-lb specified torque
- 4811 lb max end load
- 0 to 1/32 range of pipe end separation
- 0 deg 31 min deflection per coupling
- 0.11 in/ft deflection of pipe
- SAE J429, grade 5, zinc electroplated ISO 898-1, class 8.8, zinc electroplated followed by a yellow chromate dip bolts
- ASTM A563, grade A, zinc electroplated, ISO 898-2, class 8.8, zinc electroplated followed by a yellow chromate dip heavy hex nuts
- Grade "T" nitrile gasket: Recommended for petroleum applications. air with oil vapors and vegetable and mineral oils and not for use in hot water and hot air
