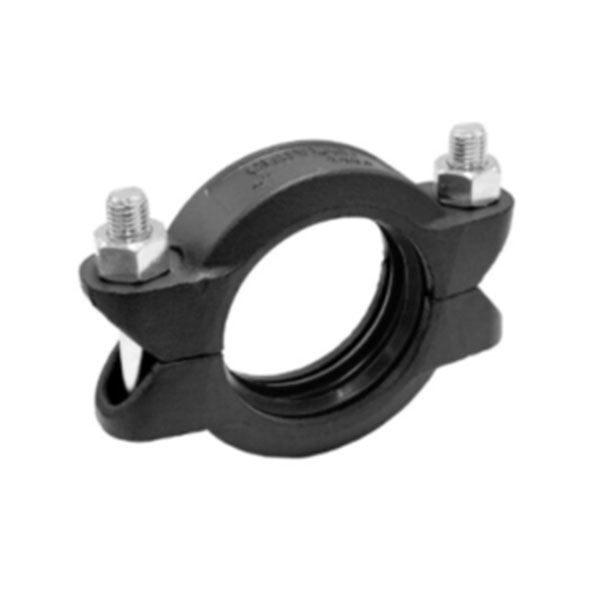

Gruvlok® 0390007185 FIG 7004EG High Pressure Coupling With End Guard Nitrile Gasket, 3 in Nominal, Grooved End Style, Ductile Iron, Black Painted, Domestic
CBPN:283759
UPC:690291105364
MPN:0390007185
DESCRIPTION
Gruvlok® Coupling, High Pressure, Series: FIG 7004EG, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 1-7/8 in Thickness, 1000 psi, Ductile Iron, Black Painted, 3-1/2 in OD, Domestic
The Gruvlok Fig. 7004 is designed to provide the versatility of a grooved joint while providing a rigid pipe joint. The Fig. 7004 coupling permits working pressure ratings up to 1200 psi (82.7 bar). This coupling is also suited for lower pressure systems which experience pressure pulses. Systems used for high pressure, including auto and truck washes, will benefit from the increased pressure capability. Working Pressure & End Load values are based on grooved standard wall pipe. Fig. 7004 provides a rigid joint and does not allow for expansion or contraction. The Fig. 7004 coupling is an ideal choice for higher pressure applications such as elevator services.
Gruvlok® 0390007185 FIG 7004EG High Pressure Coupling With End Guard Nitrile Gasket, 3 in Nominal, Grooved End Style, Ductile Iron, Black Painted, Domestic
CBPN:283759
MPN:0390007185
UPC:690291105364
DESCRIPTION
Gruvlok® Coupling, High Pressure, Series: FIG 7004EG, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 1-7/8 in Thickness, 1000 psi, Ductile Iron, Black Painted, 3-1/2 in OD, Domestic
The Gruvlok Fig. 7004 is designed to provide the versatility of a grooved joint while providing a rigid pipe joint. The Fig. 7004 coupling permits working pressure ratings up to 1200 psi (82.7 bar). This coupling is also suited for lower pressure systems which experience pressure pulses. Systems used for high pressure, including auto and truck washes, will benefit from the increased pressure capability. Working Pressure & End Load values are based on grooved standard wall pipe. Fig. 7004 provides a rigid joint and does not allow for expansion or contraction. The Fig. 7004 coupling is an ideal choice for higher pressure applications such as elevator services.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- (2) 5/8 x 3-1/2 in coupling bolts
- 100 to 130 ft-lb specified torque
- 11545 lb max end load
- 0 to 1/32 range of pipe end separation
- SAE J429, grade 5, zinc electroplated ISO 898-1, class 8.8, zinc electroplated followed by a yellow chromate dip bolts
- ASTM A563, grade A, zinc electroplated, ISO 898-2, class 8.8, zinc electroplated followed by a yellow chromate dip heavy hex nuts
- Grade "T" nitrile gasket: Recommended for petroleum applications, air with oil vapors and vegetable and mineral oils and not for use in hot water or hot air
