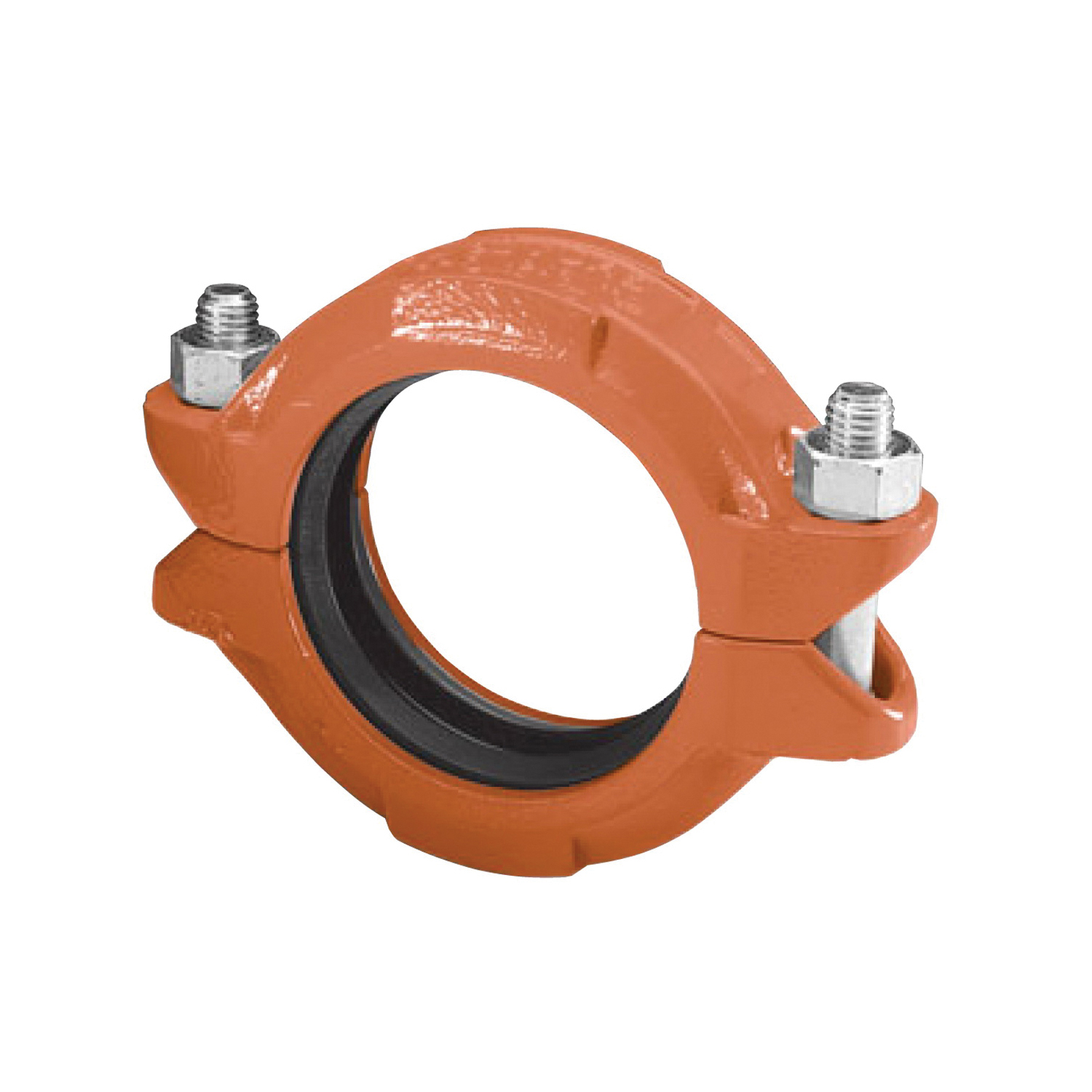

Gruvlok® 0390004729 FIG 7001-2 2-Piece Standard Flexible Coupling With Flush Gap EPDM Gasket, 20 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Import

CBPN: 295605

UPC:690291269868

MPN:0390004729

Price:

$1518.82 / EA

Oversize or overweight

This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

QTY

Gruvlok® Coupling, 2-Piece Standard Flexible, Series: FIG 7001-2, Fitting/Connector Type: Coupling, 20 in Nominal, Grooved, 3-1/8 in Thickness, 27-1/8 in Length, 350 psi, Ductile Iron, Rust Inhibiting Painted, Orange, 23 in OD x 3-1/8 in W, Import

Gruvlok® introduces new 2-piece large diameter standard groove couplings in both rigid and flexible styles.

CBPN: 295605

MPN:0390004729

UPC:690291269868

Price:

$1518.82 / EA

Oversize or overweight

This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

QTY

Gruvlok® introduces new 2-piece large diameter standard groove couplings in both rigid and flexible styles.

Brand: Gruvlok®

Weight: 80.13 lbs

Fitting/Connector Type: Coupling

Nominal Size: 20 in

End Style: Grooved

Finish: Rust Inhibiting Orange Painted

Material: Ductile Iron

Gasket Material: Flush Gap EPDM

Color: Orange

Dimensions: 23 in OD x 3-1/8 in W

Length: 27-1/8 in

Manufacturer Name: ASC Engineered Solutions

Pressure Rating: 350 psi

Series: FIG 7001-2

Thickness: 3-1/8 in

Type: 2-Piece Standard Flexible

Includes: Grade E Green EPDM Flush Gap Gasket, Stainless Steel Bolts and Nuts

Domestic/Import: Import

Country of Origin: CN

Standards and Approvals: ASTM A563 Heavy Hex Nuts/Housing | ASTM D2000 Gasket | AWWA C-606 Grooves | SAE J429 Bolts

Internationally Manufuactured. The Gruvlok® Fig. 7001 Coupling forms a flexible grooved end pipe joint connection with the versatility for a wide range of applications.
No special grooves or grooving tools needed
No special fittings needed
No special valves needed
Up to 23% less weight than competitive models
Gasket recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services, not for use in petroleum applications
