GRUVLOK  FIG 7001 Flexible Pipe Coupling

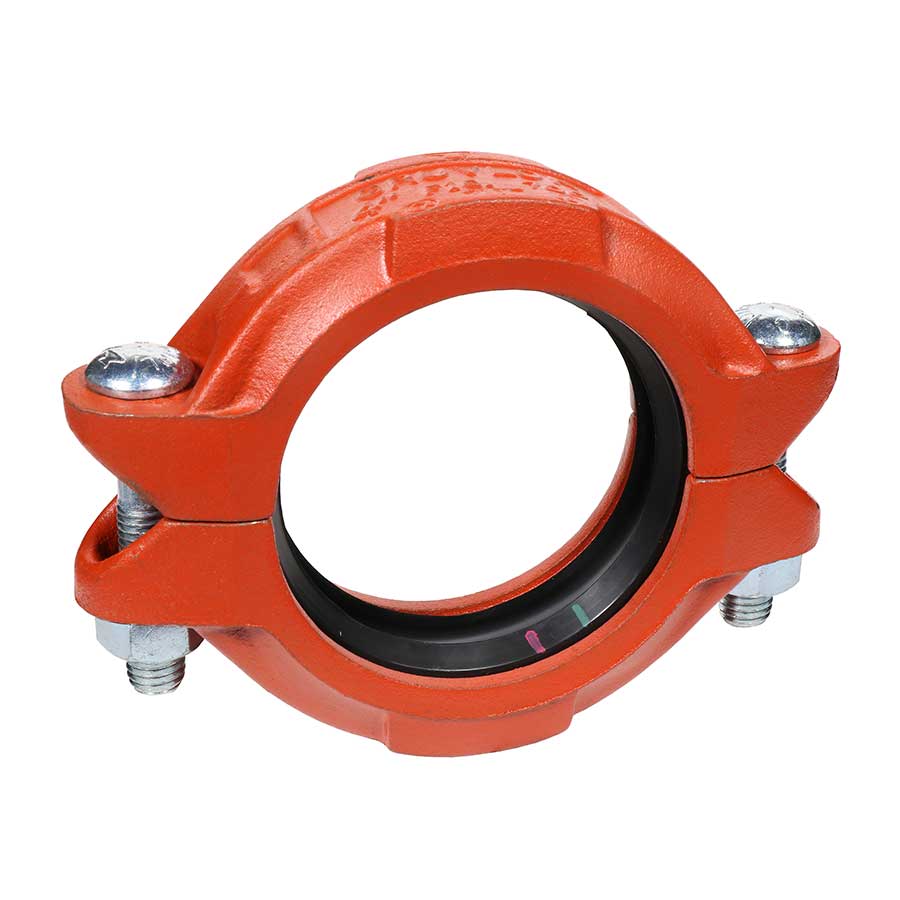

Gruvlok® 0390003127 FIG 7001 Flexible Pipe Coupling With EPDM Gasket, 6 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Painted, Domestic

CBPN:21416

UPC:690291104893

MPN:0390003127

Price:
$144.04 / EA

DESCRIPTION

Gruvlok® Pipe Coupling, Flexible, Series: FIG 7001, Fitting/Connector Type: Coupling, 6 in Nominal, Grooved, SCH 40/STD, 1000 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 250 deg F, 6-5/8 in OD, Domestic

The Gruvlok® Fig. 7001 Coupling forms a flexible grooved end pipe joint connection with the versatility for a wide range of applications. Services include mechanical and plumbing, process piping, mining and oil field piping, and many others. The coupling design supplies optimum strength for working pressures to 1000 PSl (69 bar) without excessive casting weight. The flexible design eases pipe and equipment installation while providing the designed-in benefit of reducing pipeline noise and vibration transmission without the addition of special components. To ease coupling handling and assembly and to assure consistent quality, sizes 1 in through 14 in couplings have two 180 deg segment housings, 16 in have three 120 deg segment housings, and 18 in through 24 in sizes have four 90 deg segment housings, while the 28 in O.D. and 30 in O.D. couplings have six 60 deg segment housings. The 28 in O.D. and 30 in O.D. are weld-ring couplings.

Gruvlok® 0390003127 FIG 7001 Flexible Pipe Coupling With EPDM Gasket, 6 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Painted, Domestic

CBPN:21416

MPN:0390003127

UPC:690291104893

Price:
$144.04 / EA

Gruvlok Logo

DESCRIPTION

Gruvlok® Pipe Coupling, Flexible, Series: FIG 7001, Fitting/Connector Type: Coupling, 6 in Nominal, Grooved, SCH 40/STD, 1000 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 250 deg F, 6-5/8 in OD, Domestic

The Gruvlok® Fig. 7001 Coupling forms a flexible grooved end pipe joint connection with the versatility for a wide range of applications. Services include mechanical and plumbing, process piping, mining and oil field piping, and many others. The coupling design supplies optimum strength for working pressures to 1000 PSl (69 bar) without excessive casting weight. The flexible design eases pipe and equipment installation while providing the designed-in benefit of reducing pipeline noise and vibration transmission without the addition of special components. To ease coupling handling and assembly and to assure consistent quality, sizes 1 in through 14 in couplings have two 180 deg segment housings, 16 in have three 120 deg segment housings, and 18 in through 24 in sizes have four 90 deg segment housings, while the 28 in O.D. and 30 in O.D. couplings have six 60 deg segment housings. The 28 in O.D. and 30 in O.D. are weld-ring couplings.

Specifications

BrandGruvlok®
Weight11.81 lbs
Fitting/Connector TypeCoupling
Nominal Size6 in
End StyleGrooved
FinishRust Inhibiting Orange Painted
MaterialDuctile Iron
Gasket MaterialEPDM
ColorOrange
Dimensions6-5/8 in OD
Manufacturer NameASC Engineered Solutions
Pressure Rating1000 psi
Schedule RatingSCH 40/STD
SeriesFIG 7001
Temperature Rating-40 to 250 deg F
TypeFlexible
ApplicationFor Grooved-End Pipes
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalscULus Listed | FM Approved | NSF/ANSI 61 | UPC Listed

Item Features

  • Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
