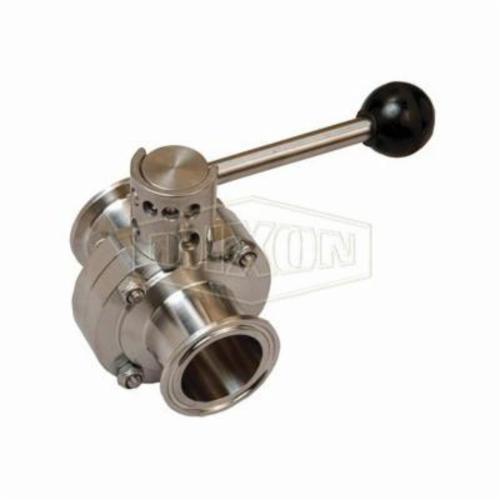

Dixon Sanitary B5101S400CC-A Butterfly Valve, 4 in Nominal, Clamp End End Style, 316L Stainless Steel Body & Disc, Silicone Seat, Pull Handle
CBPN: 90012
MPN:B5101S400CC-A
Dixon Sanitary B5101S400CC-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 4 in Nominal, Clamp End, 15 to 200 deg F, Pull Handle Actuator, 4.8 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 6.7 in D
Dixon Sanitary B5101S400CC-A Butterfly Valve, 4 in Nominal, Clamp End End Style, 316L Stainless Steel Body & Disc, Silicone Seat, Pull Handle
CBPN: 90012
MPN:B5101S400CC-A
Dixon Sanitary B5101S400CC-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 4 in Nominal, Clamp End, 15 to 200 deg F, Pull Handle Actuator, 4.8 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 6.7 in D
Specifications
Brand: Dixon Sanitary
Weight: 11.45 lbs
Nominal Size: 4 in
Body Material: Stainless Steel
Disc Material: Stainless Steel
Seat Material: Silicone
Actuator Type: Pull Handle
End Style: Sanitary Clamp
Dimensions: 6.7 in D
Inlet to Outlet Length: 4.8 in
Manufacturer Name: Dixon Sanitary
Series: B5101
Temperature Rating: 15 to 200 deg F
Top to Inlet Center: 4-1/2 in
Warranty: Limited
Standards and Approvals: PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Features
- 100% hydraulic tested/100% inspected
- Field serviceable (no special tools required)
- All wetted surfaces are sanitary finished to < 32Ra
- 350 in-lb break torque
- 800 Cv flow co-efficient
- 0.4 in Hg vacuum at 68 deg F minimal line pressure
- Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F/ 20 deg C
- Handle is not assembled when shipped
