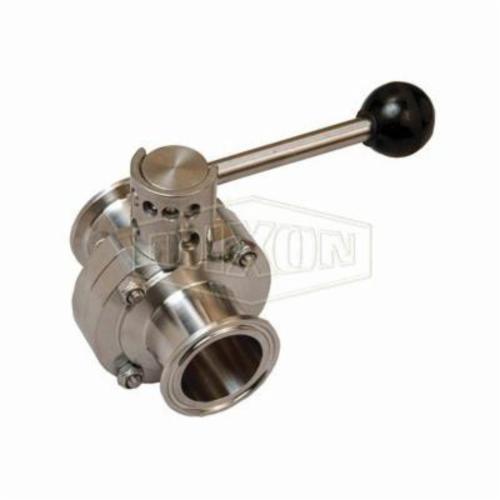

Dixon Sanitary B5101S300CC-A Butterfly Valve, 3 in Nominal, Clamp End Style, 316L Stainless Steel Body & Disc, Silicone Seat, Pull Handle
CBPN: 180180
UPC:089109799886
MPN:B5101S300CC-A
Dixon Sanitary B5101S300CC-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 3 in Nominal, Clamp End, 15 to 200 deg F, Pull Handle Actuator, 4.1 in Inlet to Outlet Length, 3.8 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 5.2 in D
Dixon Sanitary B5101S300CC-A Butterfly Valve, 3 in Nominal, Clamp End Style, 316L Stainless Steel Body & Disc, Silicone Seat, Pull Handle
CBPN: 180180
MPN:B5101S300CC-A
UPC:089109799886
Dixon Sanitary B5101S300CC-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 3 in Nominal, Clamp End, 15 to 200 deg F, Pull Handle Actuator, 4.1 in Inlet to Outlet Length, 3.8 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 5.2 in D
Specifications
Brand: Dixon Sanitary
Weight: 6.85 lbs
Nominal Size: 3 in
Body Material: Stainless Steel
Disc Material: Stainless Steel
Seat Material: Silicone
Actuator Type: Pull Handle
End Style: Sanitary Clamp
Dimensions: 5.2 in D
Inlet to Outlet Length: 4.1 in
Manufacturer Name: Dixon Sanitary
Series: B5101
Temperature Rating: 15 to 200 deg F
Top to Inlet Center: 3.8 in
Warranty: Limited
Standards and Approvals: PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Features
- 100% hydraulic tested/100% inspected
- Field serviceable (no special tools required)
- All wetted surfaces are sanitary finished to < 32Ra
- 165 in-lb break torque
- 372 Cv flow co-efficient
- 0.4 in Hg vacuum at 68 deg F minimal line pressure
- Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F/ 20 deg C
- Handle is not assembled when shipped
