CRANE® L47XUF-4

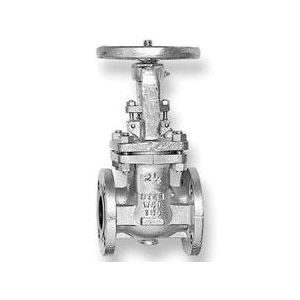

CRANE® 47XUF-4 47 Series Gate Valve, 4 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Hand Wheel Actuator

CBPN:11941

MPN:L47XUF-4

Price:
$893.36 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

DESCRIPTION

CRANE® Gate Valve, Series: 47 Series, 4 in Nominal, Flanged, 285 psi, 150 lb, -20 to 100 deg F, Hand Wheel Actuator, 9 in Inlet to Outlet Length, 23 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing, 10 in Hand Wheel

CRANE® cast steel gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

CRANE® 47XUF-4 47 Series Gate Valve, 4 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Hand Wheel Actuator

CBPN:11941

MPN:L47XUF-4

Price:
$893.36 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

Crane logo

DESCRIPTION

CRANE® Gate Valve, Series: 47 Series, 4 in Nominal, Flanged, 285 psi, 150 lb, -20 to 100 deg F, Hand Wheel Actuator, 9 in Inlet to Outlet Length, 23 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing, 10 in Hand Wheel

CRANE® cast steel gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

Specifications

BrandCRANE®
Series47 Series
Body MaterialCast Steel
End StyleFlanged
Nominal Size4 in
Pressure Rating285 psi
Temperature Rating-20 to 100 deg F
Actuator TypeHandwheel
Pressure Class150 lb
Softgoods MaterialGraphite Packing
Trim Material410 Stainless Steel
Hand Wheel Diameter10 in
Inlet to Outlet Length9 in
Top to Inlet Center23 in
Weight110 lbs

Item Features

  • Outside screw and yoke
  • Flexible wedge disc
  • All seat ring are seal welded as standard
  • Quality process fully documented, material fully traceable
  • Full range of special trims and option available
  • Standard construction: wcb-trim 8, other option are available
  • Crane recommends the use of manual or powered gear assistance for size 8 in and larger
  • F6/Hard faced nominal trim
  • 13 Cr ASTM A217 (CA 215) CoCra seating surface
