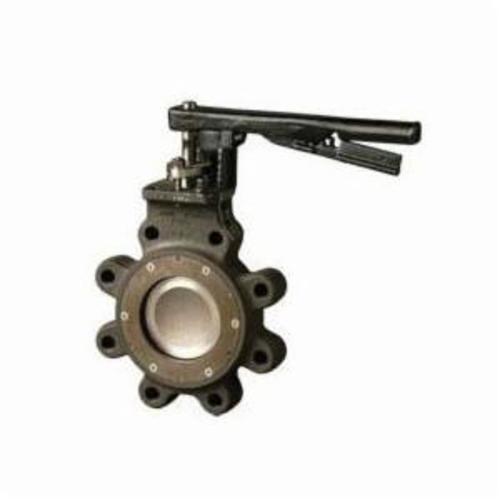

Crane Flowseal 03-1DA-12DRTG-HOK High Performance Lug Butterfly Valve, 3" Nominal, 150 lb, Carbon Steel Body, SS Disc, RTFE Seat Material, Lever Handle
CBPN: 178270
MPN:03-1DA-12DRTG-HOK
DESCRIPTION
CRANE® Flowseal® Butterfly Valve, High Performance, 3 in Nominal, 150 lb, Ratchet Handle Actuator, 1.92 in Inlet to Outlet Length, 8.6 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Disc, Stainless Steel (Stem) Stem & Pin Material, TFE, 11.98 in L
Flowseal® High Performance Butterfly Valves are a standard in many industries including heating, ventilating and air conditioning, power generation, hydrocarbon processing, water and waste water treatment, and marine and commercial shipbuilding. Our products are also installed in applications as diverse as food and beverage processing, snowmaking and pulp and paper production. Configurations are available for harsh conditions as well as applications requiring nominal pressure and temperature ratings.
Crane Flowseal 03-1DA-12DRTG-HOK High Performance Lug Butterfly Valve, 3" Nominal, 150 lb, Carbon Steel Body, SS Disc, RTFE Seat Material, Lever Handle
CBPN: 178270
MPN:03-1DA-12DRTG-HOK
DESCRIPTION
CRANE® Flowseal® Butterfly Valve, High Performance, 3 in Nominal, 150 lb, Ratchet Handle Actuator, 1.92 in Inlet to Outlet Length, 8.6 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Disc, Stainless Steel (Stem) Stem & Pin Material, TFE, 11.98 in L
Flowseal® High Performance Butterfly Valves are a standard in many industries including heating, ventilating and air conditioning, power generation, hydrocarbon processing, water and waste water treatment, and marine and commercial shipbuilding. Our products are also installed in applications as diverse as food and beverage processing, snowmaking and pulp and paper production. Configurations are available for harsh conditions as well as applications requiring nominal pressure and temperature ratings.
Specifications
Item Features
- High performance shut-off and modulating service for standard industrial process lines
- Material of construction option include carbon and stainless steel
- Size up to 48 in, both wafer and lugged body style available, classes 150 - 600
- Lug DDES(double Dead end service) style body, garfil(Glass backed TFE) bearings
- Shaft material other than 17-4 PH or Monel® will affect working pressure rating
- RTFE/Silicone combination is not to be used with "NACE" valve
- Straight 17-4 PH stainless steel with DHT stem
- TFE packing
