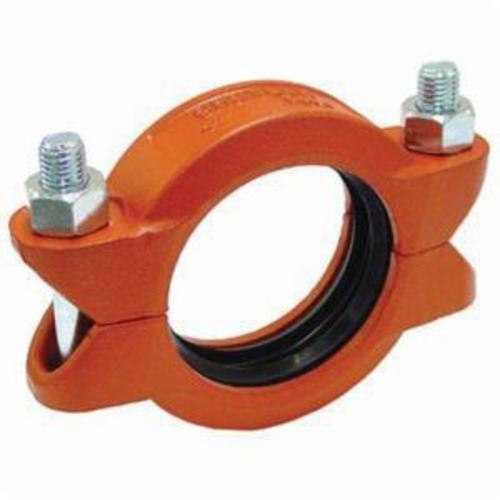

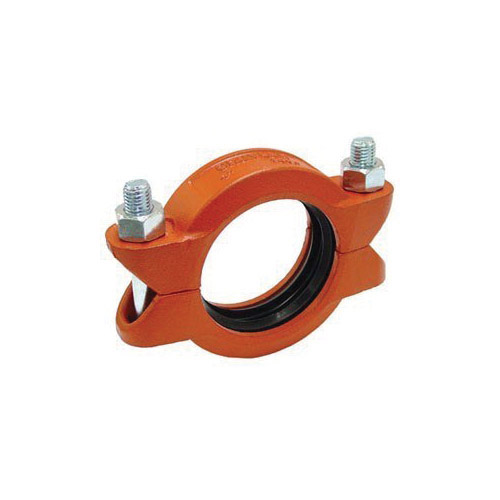

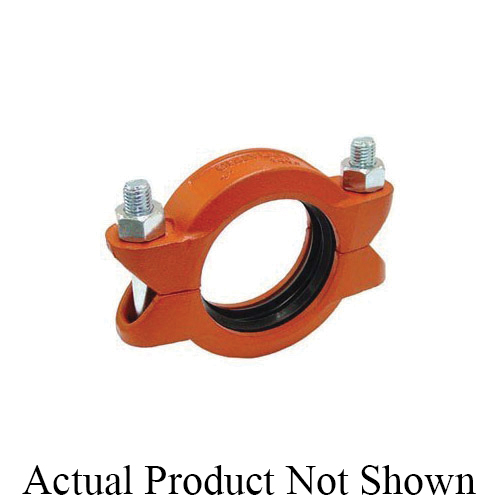

Gruvlok FIG 7004EG High Pressure Couplings

Gruvlok FIG 7004EG High Pressure Couplings use specially designed Nitrile “End Guard” Gaskets to provide a ridged joint to “EG” grooved pipe. These pipe fittings are rated up to 2500 PSI in working pressure and they do not allow for expansion or contraction.

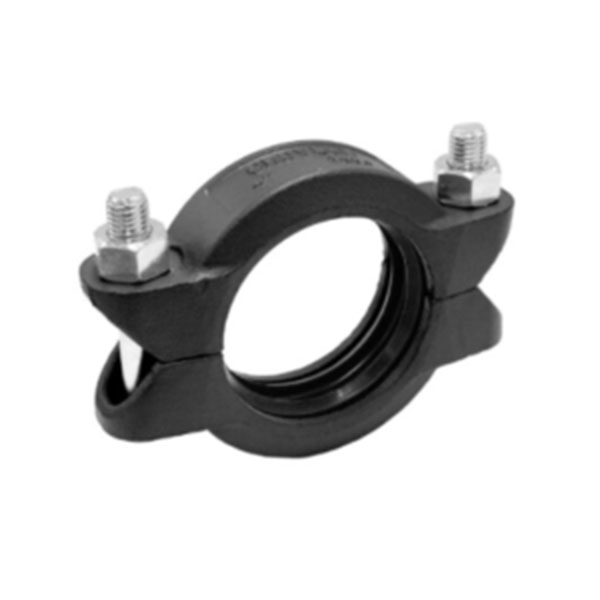

Cooney Brothers is proud to offer a range of 7004EG High Pressure Couplings, made from Ductile Iron with hot-dipped zinc galvanized or rust-inhibiting black painted coatings. These couplings are available between 2” to 12” in size and they have grooved end connections.

Shop our selection of compatible Gruvlok FIG 7004EG High Pressure Coupling Lubricants in standard and Gruvlok Xtreme styles.

The End Guard Grade “T” Gasket makes these couplings ideally suited for internally lined or coated pipe applications because of the center rib which extends between the pipes in order to provide pipe end protection. 7004EG Couplings are intended to be used with petroleum, air with oil vapors and vegetable and mineral oils, but not hot water or hot air.

Are you looking for an alternative to Victaulic Style 89? The Gruvlok FIG 7004EG High Pressure Coupling crosses to 89 Victaulic Rigid Couplings.

Explore our selection of FIG 7004EG Pipe Fittings which includes real-time inventory, spec sheets, and accessories. Contact us for technical assistance.
