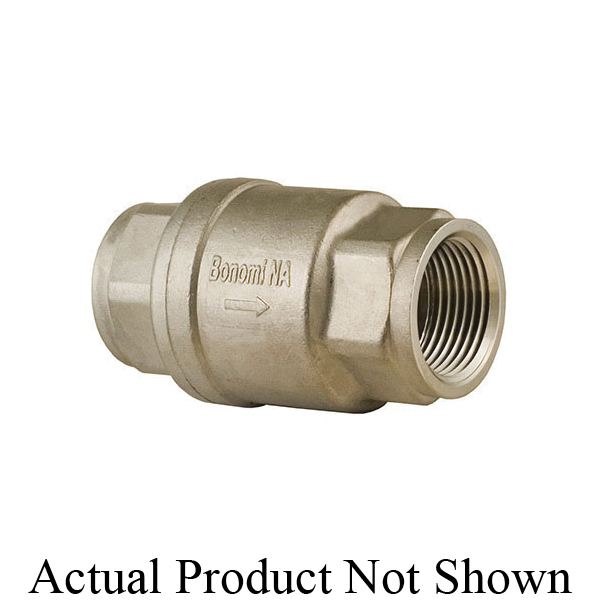

Bonomi S800-2-1/2 High Capacity In-Line Check Valve, 2-1/2 in Nominal, FNPT End Style, 316 Stainless Steel Body, PTFE Softgoods, Import
CBPN: 305158
MPN:S800-2-1/2
Price:
$953.79 / EA
DESCRIPTION
Bonomi North America In-Line Check Valve, High Capacity, Series: S800, 2-1/2 in Nominal, FNPT End Style, 800 psi WOG/125 psi WSP Pressure, 10 to 450 deg F, No Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 316 Stainless Steel Body, 316 Stainless Steel/PTFE Trim, PTFE Softgoods, Import
Bonomi S800-2-1/2 High Capacity In-Line Check Valve, 2-1/2 in Nominal, FNPT End Style, 316 Stainless Steel Body, PTFE Softgoods, Import
CBPN: 305158
MPN:S800-2-1/2
Price:
$953.79 / EA
DESCRIPTION
Bonomi North America In-Line Check Valve, High Capacity, Series: S800, 2-1/2 in Nominal, FNPT End Style, 800 psi WOG/125 psi WSP Pressure, 10 to 450 deg F, No Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 316 Stainless Steel Body, 316 Stainless Steel/PTFE Trim, PTFE Softgoods, Import
Specifications
Brand: Bonomi North America
Weight: 6 lbs
Nominal Size: 2-1/2 in
End Style: FNPT
Body Material: Stainless Steel
Softgoods Material: PTFE
Manufacturer Name: Bonomi North America
Pressure Rating: 600 psi WOG/125 psi WSP
Series: S800
Temperature Rating: 10 to 450 deg F
Trim Material: 316 Stainless Steel/PTFE
Type: High Capacity
Warranty: 1 Year
Domestic/Import: Import
Country of Origin: TW
Standards and Approvals: ANSI B1.20.1 | ASTM A351 Grade CF8M Body/Disc | CSA Approved
Item Features
- Soft PTFE seat for bubble tight shutoff, spring loaded for fast seating action
- Low cracking pressure 1/2 psi
- 125 psi WSP saturated steam
- Perfect seating both at high and low pressure
- Corrosion resistant excellent for use on chemicals
- Dual guided stem and disc
- Investment casting
- 316 stainless steel body/disc
- PTFE seat
- PTFE gasket
