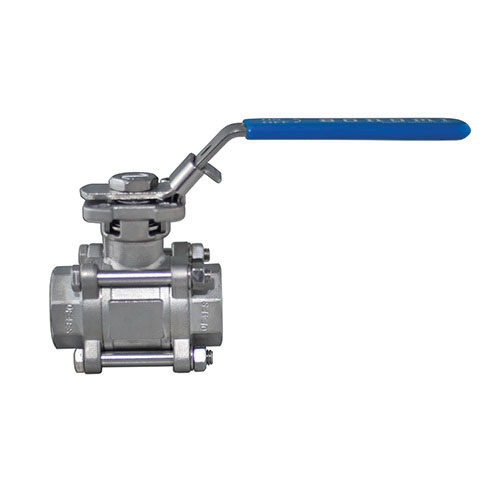

Bonomi 721LL-2-1/2 3-Piece Direct Mount Ball Valve, 2-1/2 in Nominal, Socket Weld End Style, 316 Stainless Steel Body, Full Port, FKM/25% Fiberglass + PTFE/RTFE Softgoods, Import
CBPN: 305290
MPN:721LL-2-1/2
Price:
$897.02 / EA
DESCRIPTION
Bonomi North America Ball Valve, 3-Piece Direct Mount, Series: 721LL, 2-1/2 in Nominal, Socket Welded End Style, 800 psi/150 psi Steam Pressure, -60 to 440 deg F, Full Port, Media: Steam, 2.56 in Orifice, Latch Locking Lever Handle Actuator, 316 Stainless Steel Ball, 6.46 in Inlet to Outlet Length, 6.58 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/1600 TFM Trim, FKM/25% Fiberglass + PTFE/RTFE Softgoods, Domestic/Import: Import
Bonomi 721LL-2-1/2 3-Piece Direct Mount Ball Valve, 2-1/2 in Nominal, Socket Weld End Style, 316 Stainless Steel Body, Full Port, FKM/25% Fiberglass + PTFE/RTFE Softgoods, Import
CBPN: 305290
MPN:721LL-2-1/2
Price:
$897.02 / EA
DESCRIPTION
Bonomi North America Ball Valve, 3-Piece Direct Mount, Series: 721LL, 2-1/2 in Nominal, Socket Welded End Style, 800 psi/150 psi Steam Pressure, -60 to 440 deg F, Full Port, Media: Steam, 2.56 in Orifice, Latch Locking Lever Handle Actuator, 316 Stainless Steel Ball, 6.46 in Inlet to Outlet Length, 6.58 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/1600 TFM Trim, FKM/25% Fiberglass + PTFE/RTFE Softgoods, Domestic/Import: Import
Specifications
Brand: Bonomi North America
Weight: 21 lbs
Nominal Size: 2-1/2 in
End Style: Socket Weld
Pressure Rating: 800 psi/150 psi Steam
Body Material: 316 Stainless Steel
Port Type: Full
Softgoods Material: FKM/25% Fiberglass + PTFE/RTFE
Actuator Type: Latch Locking Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 6.46 in
Manufacturer Name: Bonomi North America
Media: Steam
Orifice Size: 2.56 in
Series: 721LL
Temperature Rating: -60 to 440 deg F
Top to Inlet Center: 6.58 in
Trim Material: 316 Stainless Steel/1600 TFM
Type: 3-Piece Direct Mount
Warranty: 1 Year
Domestic/Import: Import
Country of Origin: TW
Standards and Approvals: ASTM Grade CF8M Body
Item Features
- Blow out proof stem, adjustable multi-layer V-ring stem packaging
- TFM 1600 seat, PTFE packing and thrust washer
- ISO 5211 mounting pad/square stem
- Vinyl handle sleeve
- 316 stainless steel stem
- RTFE stem seal
- PTFE join gasket
- FKM O-ring
- 25% fiberglass + PTFE stem packing
