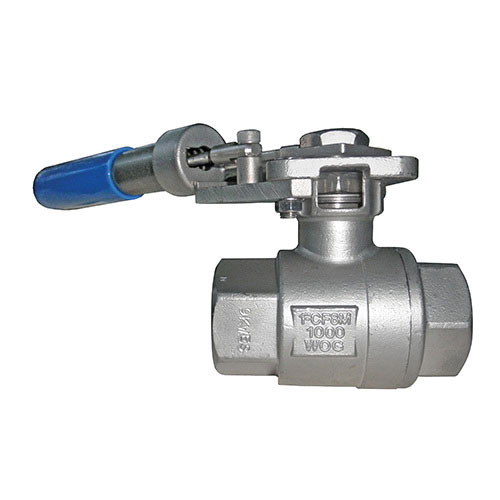

Bonomi 2200SRL-2 2-Way 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, 316 Stainless Steel Body, Full Port, FKM/PTFE + 25% Glass Fiber Filled/RPTFE Softgoods, Import
CBPN: 300592
MPN:2200SRL-2
Price:
$538.83 / EA
DESCRIPTION
Bonomi North America Ball Valve, 2-Way 2-Piece, Series: 2200SRL, 2 in Nominal, FNPT, 1000 psi, -40 to 450 deg F, Full Port, 1.97 in Orifice, Deadman Spring Return Lever Handle Actuator, 316 Stainless Steel Ball, 4.92 in Inlet to Outlet Length, 4.14 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/PTFE/Vinyl Trim, FKM/PTFE + 25% Glass Fiber Filled/RPTFE, Import
Bonomi 2200SRL-2 2-Way 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, 316 Stainless Steel Body, Full Port, FKM/PTFE + 25% Glass Fiber Filled/RPTFE Softgoods, Import
CBPN: 300592
MPN:2200SRL-2
Price:
$538.83 / EA
DESCRIPTION
Bonomi North America Ball Valve, 2-Way 2-Piece, Series: 2200SRL, 2 in Nominal, FNPT, 1000 psi, -40 to 450 deg F, Full Port, 1.97 in Orifice, Deadman Spring Return Lever Handle Actuator, 316 Stainless Steel Ball, 4.92 in Inlet to Outlet Length, 4.14 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/PTFE/Vinyl Trim, FKM/PTFE + 25% Glass Fiber Filled/RPTFE, Import
Specifications
Brand: Bonomi North America
Weight: 8.8 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Rating: 1000 psi
Body Material: 316 Stainless Steel
Port Type: Full
Softgoods Material: FKM/PTFE + 25% Glass Fiber Filled/RPTFE
Actuator Type: Deadman Spring Return Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.92 in
Manufacturer Name: Bonomi North America
Orifice Size: 1.97 in
Series: 2200SRL
Temperature Rating: -40 to 450 deg F
Top to Inlet Center: 4.14 in
Trim Material: 316 Stainless Steel/PTFE/Vinyl
Type: 2-Way 2-Piece
Warranty: 1 Year
Domestic/Import: Import
Country of Origin: TW
Standards and Approvals: ANSI B1.20.1 | ASTM Grade CF8M Body | CSA Approved
Item Features
- CF8M type 316 investment cast body
- Live loaded high cycle stem packing
- Blow out proof stem
- Adjustable spring return lever
- Antistatic design
- 316 stainless steel stem
- Vinyl handle sleeve
- PTFE join gasket/seat
- PTFE + 25% glass fiber filled stem packing
- FKM O-ring
